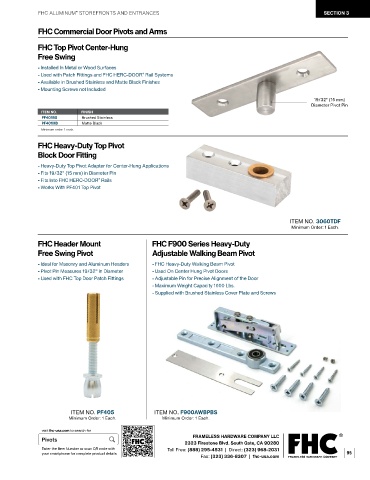

Page 97 - FAL24R Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 3
®
FHC Commercial Door Pivots and Arms

FHC Top Pivot Center-Hung
Free Swing
- Installed In Metal or Wood Surfaces
- Used with Patch Fittings and FHC HERC-DOOR Rail Systems
®
- Available in Brushed Stainless and Matte Black Finishes
- Mounting Screws not Included
19/32" (15 mm)
Diameter Pivot Pin
ITEM NO. FINISH
PF401BS Brushed Stainless
PF401MB Matte Black
Minimum order: 1 each.

FHC Heavy-Duty Top Pivot
Block Door Fitting
- Heavy-Duty Top Pivot Adapter for Center-Hung Applications
- Fits 19/32" (15 mm) in Diameter Pin
- Fits Into FHC HERC-DOOR Rails
®
- Works With PF401 Top Pivot

ITEM NO. 3060TDF
Minimum Order: 1 Each.

FHC Header Mount FHC F900 Series Heavy-Duty
Free Swing Pivot Adjustable Walking Beam Pivot

- Ideal for Masonry and Aluminum Headers - FHC Heavy-Duty Walking Beam Pivot
- Pivot Pin Measures 19/32" in Diameter - Used On Center Hung Pivot Doors
- Used with FHC T op Door Patch Fittings - Adjustable Pin for Precise Alignment of the Door
- Maximum Weight Capacity 1000 Lbs.
- Supplied with Brushed Stainless Cover Plate and Screws

ITEM NO. PF405 ITEM NO. F900AWBPBS
Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
Pivots FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 95
