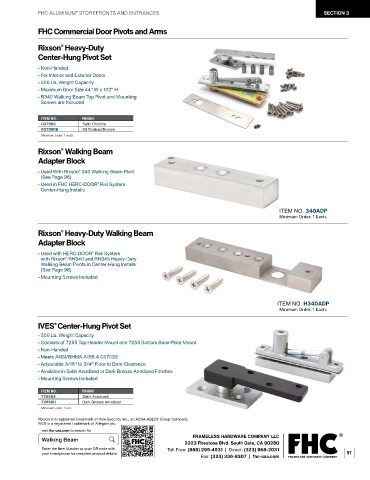

Page 99 - FAL24R Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 3
®
FHC Commercial Door Pivots and Arms

Rixson Heavy-Duty
®
Center-Hung Pivot Set
- Non-Handed
- For Interior and Exterior Doors
- 500 Lb. Weight Capacity
- Maximum Door Size 44" W x 102" H
- R340 Walking Beam Top Pivot and Mounting
Screws are Included

ITEM NO. FINISH
R370SC Satin Chrome
R3700RB Oil Rubbed Bronze
Minimum order: 1 each.
Rixson Walking Beam
®
Adapter Block

- Used With Rixson 340 Walking Beam Pivot
®
(See Page 96)
- Used in FHC HERC-DOOR Rail System
®
Center-Hung Installs

ITEM NO. 340ADP
Minimum Order: 1 Each.

Rixson Heavy-Duty Walking Beam
®
Adapter Block

- Used with HERC-DOOR Rail System
®
with Rixson RH340 and RH345 Heavy-Duty
®
Walking Beam Pivots in Center-Hung Installs
(See Page 96)
- Mounting Screws Included

ITEM NO. H340ADP
Minimum Order: 1 Each.

IVES Center-Hung Pivot Set
®
- 500 Lb. Weight Capacity
- Consists of 7255 Top Header Mount and 7255 Bottom Base Plate Mount
- Non-Handed
- Meets ANSI/BHMA A156.4 C07032
- Adjustable 3/16" to 3/4" Floor to Door Clearance
- Available in Satin Anodized or Dark Bronze Anodized Finishes
- Mounting Screws Included

ITEM NO. FINISH
7255SA Satin Anodized
7255DU Dark Bronze Anodized
Minimum order: 1 set.
Rixson is a registered trademark of Yale Security Inc., an ASSA ABLOY Group Company.
IVES is a registered trademark of Allegion plc.
