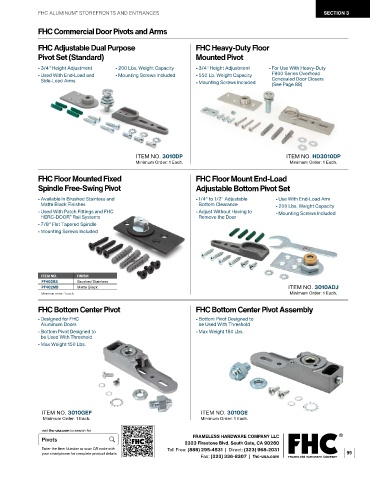

Page 101 - FAL24R Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 3
®
FHC Commercial Door Pivots and Arms

FHC Adjustable Dual Purpose FHC Heavy-Duty Floor
Pivot Set (Standard) Mounted Pivot
- 3/4" Height Adjustment - 200 Lbs. Weight Capacity - 3/4" Height Adjustment - For Use With Heavy-Duty
- Used With End-Load and - Mounting Screws Included - 550 Lb. Weight Capacity F900 Series Overhead
Side-Load Arms - Mounting Screws Included Concealed Door Closers
(See Page 88)

ITEM NO. 3010DP ITEM NO. HD3010DP
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Floor Mounted Fixed FHC Floor Mount End-Load
Spindle Free-Swing Pivot Adjustable Bottom Pivot Set
- Available in Brushed Stainless and - 1/4" to 1/2" Adjustable - Use With End-Load Arm
Matte Black Finishes Bottom Clearance - 200 Lbs. Weight Capacity
- Used With Patch Fittings and FHC - Adjust Without Having to - Mounting Screws Included
HERC-DOOR Rail Systems Remove the Door
®
- 7/8" Flat Tapered Spindle
- Mounting Screws Included

ITEM NO. FINISH
PF402BS Brushed Stainless
PF402MB Matte Black ITEM NO. 3010ADJ
Minimum order: 1 each. Minimum Order: 1 Each.

FHC Bottom Center Pivot FHC Bottom Center Pivot Assembly
- Designed for FHC - Bottom Pivot Designed to
Aluminum Doors be Used With Threshold
- Bottom Pivot Designed to - Max Weight 150 Lbs.
be Used With Threshold
- Max Weight 150 Lbs.

ITEM NO. 3010GEF ITEM NO. 3010GE
Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
Pivots FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 99
Fax: (323) 336-8307 | fhc-usa.com
