INCLUDED WITH GLASS IN A BOX:
FHC Glass Surface
Protective Coating
FHC HERC-DOOR • CO-POLYMER NANOTECHNOLOGY
®
• FACTORY-APPLIED TO BOTH
Frameless Entrance • PROTECTS AGAINST HARD
GLASS SURFACES
WATER BUILD UP
• EASY TO CLEAN

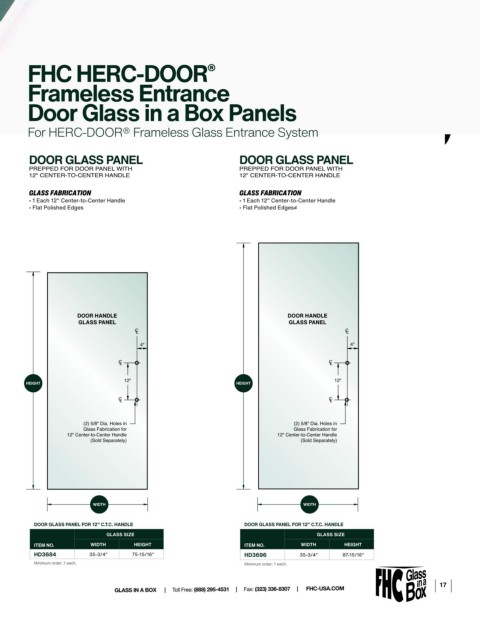

Door Glass in a Box Panels

For HERC-DOOR® Frameless Glass Entrance System

DOOR GLASS PANEL DOOR GLASS PANEL
PREPPED FOR DOOR PANEL WITH PREPPED FOR DOOR PANEL WITH
12" CENTER-TO-CENTER HANDLE 12" CENTER-TO-CENTER HANDLE
GLASS FABRICATION GLASS FABRICATION
• 1 Each 12" Center-to-Center Handle • 1 Each 12" Center-to-Center Handle
• Flat Polished Edges • Flat Polished Edges≠

DOOR HANDLE DOOR HANDLE
GLASS PANEL GLASS PANEL
C L C L
4" 4"

C L C L

HEIGHT 12" HEIGHT 12"

C L C L

(2) 5/8" Dia. Holes in (2) 5/8" Dia. Holes in
Glass Fabrication for Glass Fabrication for
12" Center-to-Center Handle 12" Center-to-Center Handle
(Sold Separately) (Sold Separately)

WIDTH WIDTH

DOOR GLASS PANEL FOR 12" C.T.C. HANDLE DOOR GLASS PANEL FOR 12" C.T.C. HANDLE
GLASS SIZE GLASS SIZE
ITEM NO. WIDTH HEIGHT ITEM NO. WIDTH HEIGHT
HD3684 35-3/4" 75-15/16" HD3696 35-3/4" 87-15/16"
Minimum order: 1 each. Minimum order: 1 each.

17
