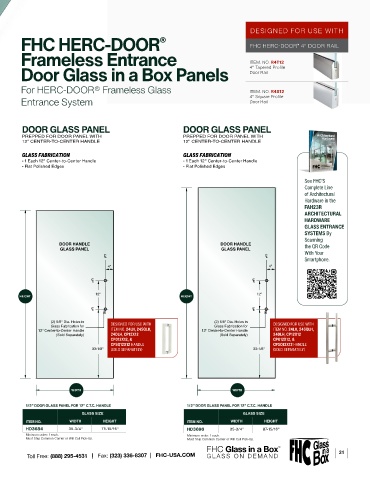

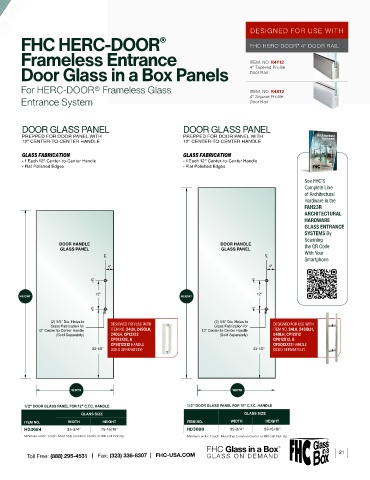

Page 23 - FGB26 Glass in a Box Catalog

DESIGNED FOR USE WITH
FHC HERC-DOOR FHC HERC-DOOR 4" DOOR RAIL
®
®
Frameless Entrance ITEM. NO. R4T12

Door Glass in a Box Panels 4" Tapered Profile
Door Rail
For HERC-DOOR® Frameless Glass ITEM. NO. R4S12

Entrance System 4" Square Profile
Door Rail

DOOR GLASS PANEL DOOR GLASS PANEL
PREPPED FOR DOOR PANEL WITH PREPPED FOR DOOR PANEL WITH
12" CENTER-TO-CENTER HANDLE 12" CENTER-TO-CENTER HANDLE
GLASS FABRICATION GLASS FABRICATION
• 1 Each 12" Center-to-Center Handle • 1 Each 12" Center-to-Center Handle
• Flat Polished Edges • Flat Polished Edges

See FHC'S
Complete Line
of Architectural
Hardware in the
FAH23R
ARCHITECTURAL
HARDWARE
GLASS ENTRANCE
SYSTEMS By
Scanning
DOOR HANDLE DOOR HANDLE the QR Code
GLASS PANEL GLASS PANEL
With Your
C L C L
Smartphone.
4" 4"

C L C L

HEIGHT 12" HEIGHT 12"

C L C L
(2) 5/8" Dia. Holes in DESIGNED FOR USE WITH (2) 5/8" Dia. Holes in DESIGNED FOR USE WITH
Glass Fabrication for Glass Fabrication for
12" Center-to-Center Handle ITEM NO. 24LH, 24SQLH, 12" Center-to-Center Handle ITEM NO. 24LH, 24SQLH,
(Sold Separately) 24DLH, CP12X12 (Sold Separately) 24DLH, CP12X12
CP012X12, & CP012X12, &
CPSQ12X12 HANDLE CPSQ12X12 HANDLE
33-1/8" (SOLD SEPARATELY) 33-1/8" (SOLD SEPARATELY)

WIDTH WIDTH

1/2" DOOR GLASS PANEL FOR 12" C.T.C. HANDLE 1/2" DOOR GLASS PANEL FOR 12" C.T.C. HANDLE
GLASS SIZE GLASS SIZE
ITEM NO. WIDTH HEIGHT ITEM NO. WIDTH HEIGHT
HD3684 35-3/4" 75-15/16" HD3696 35-3/4" 87-15/16"
Minimum order: 1 each. Minimum order: 1 each.
Must Ship Common Carrier or Will Call Pick-Up. Must Ship Common Carrier or Will Call Pick-Up.
