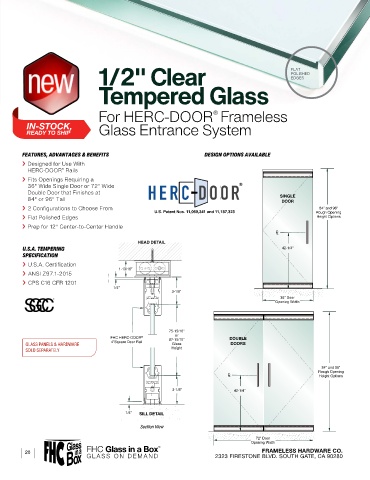

new 1/2" Clear FLAT
FLAT
POLISHED
POLISHED
EDGES
EDGES
Tempered Glass
best
For HERC-DOOR Frameless
seller
®
IN-STOCK, Glass Entrance System
READY TO SHIP

FEATURES, ADVANTAGES & BENEFITS DESIGN OPTIONS AVAILABLE
› Designed for Use With
HERC-DOOR Rails
®
› Fits Openings Requiring a
36" Wide Single Door or 72" Wide
Double Door that Finishes at
84" or 96" Tall SINGLE
DOOR
› 2 Configurations to Choose From 84" and 96"
U.S. Patent Nos. 11,060,341 and 11,187,323 Rough Opening
› Flat Polished Edges Height Options
› Prep for 12" Center-to-Center Handle
C L
HEAD DETAIL
U.S.A. TEMPERING 42-1/4"
SPECIFICATION
› U.S.A. Certification
1-13/16"
› ANSI Z97.1-2015
› CPS C16 CFR 1201
1/4"
3-1/8"
36" Door
Opening Width

75-15/16"
or
FHC HERC-DOOR ® 87-15/16" DOUBLE
GLASS PANELS & HARDWARE 4"Square Door Rail Glass DOORS
SOLD SEPARATELY Height

84" and 96"
Rough Opening
C L Height Options
3-1/8" 42-1/4"

1/4" SILL DETAIL
Section View

72" Door
Opening Width
FHC Glass in a Box
™
20 FRAMELESS HARDWARE CO.
GLASS ON DEMAND 2323 FIRESTONE BLVD. SOUTH GATE, CA 90280
