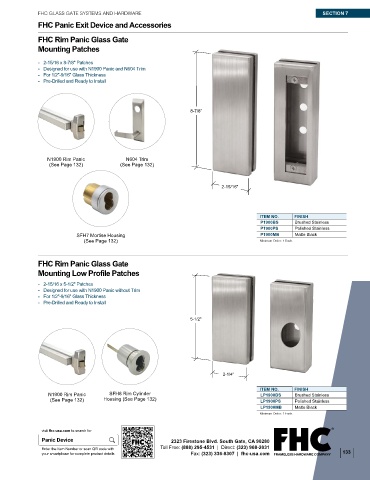

FHC GLASS GATE SYSTEMS AND HARDWARE SECTION 7
FHC Panic Exit Device and Accessories

FHC Rim Panic Glass Gate
Mounting Patches

- 2-15/16 x 8-7/8" Patches
- Designed for use with N1900 Panic and N604 Trim
- For 1/2"-9/16" Glass Thickness
- Pre-Drilled and Ready to Install

8-7/8"

N1900 Rim Panic N604 Trim
(See Page 132) (See Page 132)

2-15/16"

ITEM NO. FINISH
P1900BS Brushed Stainless
P1900PS Polished Stainless
SFH7 Mortise Housing P1900MB Matte Black
(See Page 132) Minimum Order: 1 Each.

FHC Rim Panic Glass Gate
Mounting Low Profile Patches

- 2-15/16 x 5-1/2" Patches
- Designed for use with N1900 Panic without Trim
- For 1/2"-9/16" Glass Thickness
- Pre-Drilled and Ready to Install

5-1/2"

2-1/4"

ITEM NO. FINISH
N1900 Rim Panic SFH8 Rim Cylinder LP1900BS Brushed Stainless
(See Page 132) Housing (See Page 132) LP1900PS Polished Stainless
LP1900MB Matte Black
Minimum Order: 1 Each.

visit fhc-usa.com to search for
Panic Device 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 133
