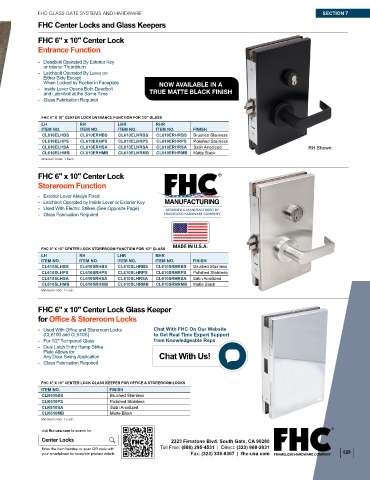

Page 143 - FHC FGR24R Architectural Railing Systems

FHC GLASS GATE SYSTEMS AND HARDWARE SECTION 7
FHC Center Locks and Glass Keepers

FHC 6" x 10" Center Lock
Entrance Function

- Deadbolt Operated By Exterior Key
or Interior Thumbturn

- Latchbolt Operated By Lever on
Either Side Except
When Locked by Rocker in Faceplate
- Inside Lever Opens Both Deadbolt NOW AVAILABLE IN A
and Latchbolt at the Same Time TRUE MATTE BLACK FINISH
- Glass Fabrication Required

FHC 6" X 10" CENTER LOCK ENTRANCE FUNCTION FOR 1/2" GLASS
LH RH LHR RHR
ITEM NO. ITEM NO. ITEM NO. ITEM NO. FINISH
CL610ELHBS CL610ERHBS CL610ELHRBS CL610ERHRBS Brushed Stainless
CL610ELHPS CL610ERHPS CL610ELHRPS CL610ERHRPS Polished Stainless
CL610ELHSA CL610ERHSA CL610ELHRSA CL610ERHRSA Satin Anodized RH Shown
CL610ELHMB CL610ERHMB CL610ELHRMB CL610ERHRMB Matte Black
Minimum Order: 1 Each.

FHC 6" x 10" Center Lock
Storeroom Function

- Exterior Lever Always Fixed
- Latchbolt Operated by Inside Lever or Exterior Key
- Used With Electric Strikes (See Opposite Page)
- Glass Fabrication Required

FHC 6" X 10" CENTER LOCK STOREROOM FUNCTION FOR 1/2" GLASS
LH RH LHR RHR
ITEM NO. ITEM NO. ITEM NO. ITEM NO. FINISH
CL610SLHBS CL610SRHBS CL610SLHRBS CL610SRHRBS Brushed Stainless
CL610SLHPS CL610SRHPS CL610SLHRPS CL610SRHRPS Polished Stainless
CL610SLHSA CL610SRHSA CL610SLHRSA CL610SRHRSA Satin Anodized
CL610SLHMB CL610SRHMB CL610SLHRMB CL610SRHRMB Matte Black RH Shown
Minimum Order: 1 Each.

FHC 6" x 10" Center Lock Glass Keeper
for Office & Storeroom Locks
- Used With Office and Storeroom Locks Chat With FHC On Our Website
(CL6100 and CL610S) to Get Real Time Expert Support
- For 1/2" Tempered Glass from Knowledgeable Reps
- Dual Latch Entry Ramp Strike
Plate Allows for
Any Door Swing Application Chat With Us!
- Glass Fabrication Required

FHC 6" X 10" CENTER LOCK GLASS KEEPER FOR OFFICE & STOREROOM LOCKS
ITEM NO. FINISH
CLK610BS Brushed Stainless
CLK610PS Polished Stainless
CLK610SA Satin Anodized
CLK610MB Matte Black
Minimum Order: 1 Each.
visit fhc-usa.com to search for
Center Locks 2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031 129
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com
