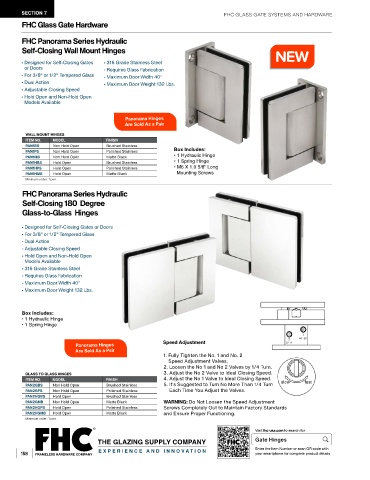

SECTION 7 FHC GLASS GATE SYSTEMS AND HARDWARE
FHC Glass Gate Hardware

FHC Panorama Series Hydraulic
Self-Closing Wall Mount Hinges

- Designed for Self-Closing Gates - 316 Grade Stainless Steel
or Doors - Requires Glass Fabrication
- For 3/8" or 1/2" Tempered Glass - Maximum Door Width 40"

- Dual Action - Maximum Door Weight 132 Lbs.
- Adjustable Closing Speed
- Hold Open and Non-Hold Open

Models Available

Panorama Hinges
Are Sold As a Pair
WALL MOUNT HINGES
ITEM NO. MODEL FINISH
PAN1BS Non Hold Open Brushed Stainless
PAN1PS Non Hold Open Polished Stainless Box Includes:
PAN1MB Non Hold Open Matte Black • 1 Hydraulic Hinge
PAN1HBS Hold Open Brushed Stainless • 1 Spring Hinge
PAN1HPS Hold Open Polished Stainless • M6 X 1.0 5/8" Long
PAN1HMB Hold Open Matte Black Mounting Screws
Minimum order: 1 pair.

FHC Panorama Series Hydraulic
Self-Closing 180 Degree
Glass-to-Glass Hinges

- Designed for Self-Closing Gates or Doors
- For 3/8" or 1/2" Tempered Glass

- Dual Action
- Adjustable Closing Speed
- Hold Open and Non-Hold Open

Models Available
- 316 Grade Stainless Steel
- Requires Glass Fabrication
- Maximum Door Width 40"
- Maximum Door Weight 132 Lbs.

Box Includes:
• 1 Hydraulic Hinge
• 1 Spring Hinge

Panorama Hinges Speed Adjustment
Are Sold As a Pair
1. Fully Tighten the No. 1 and No. 2
Speed Adjustment Valves.
2. Loosen the No 1 and No 2 Valves by 1/4 Turn.
GLASS TO GLASS HINGES 3. Adjust the No 2 Valve to Ideal Closing Speed.
ITEM NO. MODEL FINISH 4. Adjust the No 1 Valve to Ideal Closing Speed.
PAN2GBS Non Hold Open Brushed Stainless 5. It's Suggested to Turn No More Than 1/4 Turn
PAN2GPS Non Hold Open Polished Stainless Each Time You Adjust the Valves.
PAN2HGBS Hold Open Brushed Stainless
PAN2GMB Non Hold Open Matte Black WARNING: Do Not Loosen the Speed Adjustment
PAN2HGPS Hold Open Polished Stainless Screws Completely Out to Maintain Factory Standards
PAN2HGMB Hold Open Matte Black and Ensure Proper Functioning.
Minimum order: 1 pair.
