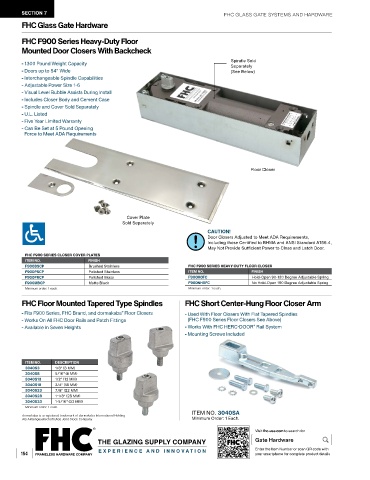

SECTION 7 FHC GLASS GATE SYSTEMS AND HARDWARE
FHC Glass Gate Hardware

FHC F900 Series Heavy-Duty Floor
Mounted Door Closers With Backcheck

- 1300 Pound Weight Capacity Spindle Sold
Separately
- Doors up to 54" Wide (See Below)
- Interchangeable Spindle Capabilities
- Adjustable Power Size 1-6
- Visual Level Bubble Assists During Install
- Includes Closer Body and Cement Case
- Spindle and Cover Sold Separately
- U.L. Listed
- Five Year Limited Warranty
- Can Be Set at 5 Pound Opening
Force to Meet ADA Requirements

Floor Closer

Cover Plate
Sold Separately
CAUTION!
Door Closers Adjusted to Meet ADA Requirements,
Including those Certified to BHMA and ANSI Standard A156.4,
May Not Provide Sufficient Power to Close and Latch Door.
FHC F900 SERIES CLOSER COVER PLATES
ITEM NO. FINISH
F900BSCP Brushed Stainless FHC F900 SERIES HEAVY-DUTY FLOOR CLOSER
F900PSCP Polished Stainless ITEM NO. FINISH
F900PBCP Polished Brass F900H0FC Hold-Open 90-120 Degree Adjustable Spring
F900MBCP Matte Black F900NH0FC No Hold-Open 180 Degree Adjustable Spring
Minimum order: 1 each. Minimum order: 1 each.

FHC Floor Mounted Tapered Type Spindles FHC Short Center-Hung Floor Closer Arm
- Fits F900 Series, FHC Brand, and dormakaba Floor Closers - Used With Floor Closers With Flat Tapered Spindles
®
- Works On All FHC Door Rails and Patch Fittings (FHC F900 Series Floor Closers See Above)
- Available in Seven Heights - Works With FHC HERC-DOOR Rail System
®
- Mounting Screws Included

ITEM NO. DESCRIPTION
3040S3 1/8" (3 MM)
3040S8 5/16" (8 MM)
3040S13 1/2" (13 MM)
3040S18 3/4" (18 MM)
3040S23 7/8" (22 MM)
3040S28 1-1/8" (28 MM)
3040S33 1-5/16" (33 MM)
Minimum order: 1 each.
ITEM NO. 3040SA
dormakaba is a registered trademark of dormakaba International Holding
AG Aktiengesellschaft (AG) Joint Stock Company Minimum Order: 1 Each.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Gate Hardware

154 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
