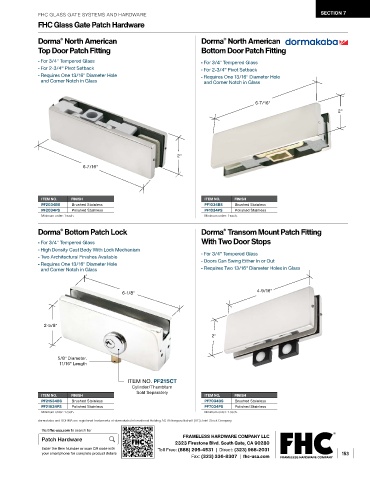

FHC GLASS GATE SYSTEMS AND HARDWARE SECTION 7
FHC Glass Gate Patch Hardware

Dorma North American Dorma North American
®
®
Top Door Patch Fitting Bottom Door Patch Fitting
- For 3/4" Tempered Glass - For 3/4" Tempered Glass
- For 2-3/4" Pivot Setback - For 2-3/4" Pivot Setback
- Requires One 13/16" Diameter Hole - Requires One 13/16" Diameter Hole
and Corner Notch in Glass and Corner Notch in Glass

6-7/16"
2"

2"
6-7/16"

ITEM NO. FINISH ITEM NO. FINISH
PF2034BS Brushed Stainless PF1034BS Brushed Stainless
PF2034PS Polished Stainless PF1034PS Polished Stainless
Minimum order: 1 each. Minimum order: 1 each.

Dorma Bottom Patch Lock Dorma Transom Mount Patch Fitting
®
®
- For 3/4" Tempered Glass With Two Door Stops
- High Density Cast Body With Lock Mechanism
- Two Architectural Finishes Available - For 3/4" Tempered Glass
- Doors Can Swing Either In or Out
- Requires One 13/16" Diameter Hole
and Corner Notch in Glass - Requires Two 13/16" Diameter Holes in Glass

6-1/8" 4-9/16"

2-5/8"

2"

5/8" Dia.
11/16" Length

ITEM NO. PF215CT
Cylinder/Thumbturn
Sold Separately
ITEM NO. FINISH ITEM NO. FINISH
PF21534BS Brushed Stainless PF7034BS Brushed Stainless
PF21534PS Polished Stainless PF7034PS Polished Stainless
Minimum order: 1 each. Minimum order: 1 each.
