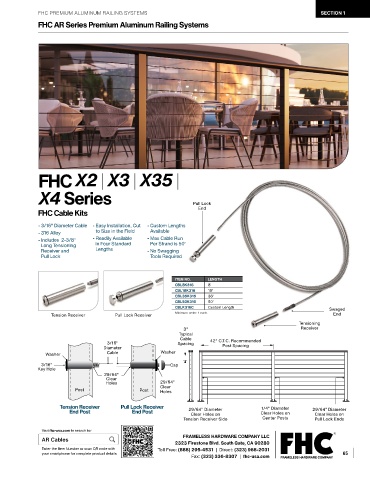

FHC PREMIUM ALUMINUM RAILING SYSTEMS SECTION 1
FHC AR Series Premium Aluminum Railing Systems
FHC A R Series Premium Aluminum Railing Sy stems

FHC X2 | X3 | X35 |

X4 Series Pull Lock

FHC Cable Kits End

- 3/16" Diameter Cable - Easy Installation, Cut - Custom Lengths
- 316 Alloy to Size in the Field Available
- Includes 2-3/8" - Readily Available - Max Cable Run
Long Tensioning in Four Standard Per Strand is 50'
Receiver and Lengths - No Swagging
Pull Lock Tools Required

ITEM NO. LENGTH
CBL8K316 8'
CBL18K316 18'
CBL36K316 36'
CBL50K316 50'
CBLK316C Custom Length Swaged
Tension Receiver Pull Lock Receiver Minimum order: 1 each. End
Tensioning
3" Receiver
Typical
Cable 42" C.T.C. Recommended
3/16" Spacing
Diameter Post Spacing
Washer Cable Washer
3/16" Cap
Key Hole
29/64"
Clear
Holes 29/64"
Post Post Clear
Holes
Tension Receiver Pull Lock Receiver 1/4" Diameter
End Post End Post 29/64" Diameter Clear Holes on 29/64" Diameter
Clear Holes on
Clear Holes on
Tension Receiver Side Center Posts Pull Lock Ends
Visit fhc-usa.com to search for
AR Cables FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 65
