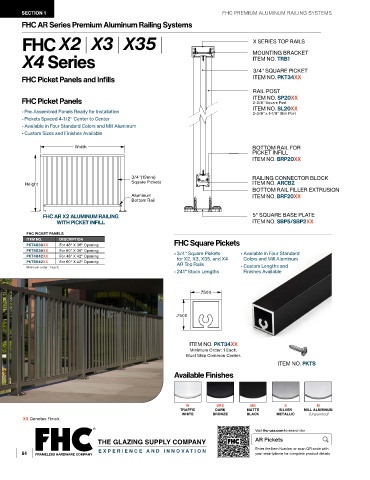

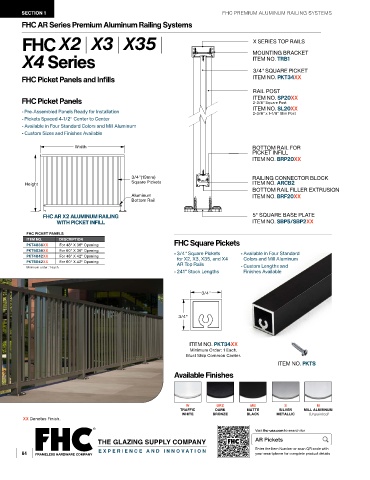

Page 66 - FHC-FARW26-Premium-Aluminum-Railing-Systems

SECTION 1
SECTION 1 FHC PREMIUM ALUMINUM RAILING SYSTEMS
FHC AR Series Premium Aluminum Railing Systems
FHC X2 | X3 | X35 | X SERIES TOP RAILS

X4 Series MOUNTING BRACKET
ITEM NO. TRB1

3/4" SQUARE PICKET
FHC Picket Panels and Infills ITEM NO. PKT34XX

RAIL POST
FHC Picket Panels ITEM NO. SP20XX
2-3/8" Square Post
ITEM NO. SL20XX
- Pre-Assembled Panels Ready for Installation 2-3/8" x 1-1/8" Slim Post
- Pickets Spaced 4-1/2" Center to Center
- Available in Four Standard Colors and Mill Aluminum
- Custom Sizes and Finishes Available

Width BOTTOM RAIL FOR
PICKET INFILL
ITEM NO. BRP20XX

3/4"(19mm) RAILING CONNECTOR BLOCK
Height Square Pickets ITEM NO. ARCB2
BOTTOM RAIL FILLER EXTRUSION
Aluminum ITEM NO. BRF20XX
Bottom Rail

FHC AR X2 ALUMINUM RAILING 5" SQUARE BASE PLATE
WITH PICKET INFILL ITEM NO. SBP5/SBP2XX

FHC PICKET PANELS
ITEM NO. DESCRIPTION FHC Square Pickets
PKT4836XX For 48" X 36" Opening
PKT6036XX For 60" X 36" Opening - 3/4" Square Pickets - Available in Four Standard
PKT4842XX For 48" X 42" Opening for X2, X3, X35, and X4 Colors and Mill Aluminum
PKT6042XX For 60" X 42" Opening AR Top Rails
Minimum order: 1 each. - Custom Lengths and
- 241" Stock Lengths Finishes Available

.7500

.7500

ITEM NO. PKT34XX
Minimum Order: 1 Each.
Must Ship Common Carrier.
ITEM NO. PKTS
Available Finishes

W BRZ MB S M
TRAFFIC DARK MATTE SILVER MILL ALUMINUM
WHITE BRONZE BLACK METALLIC (Unpainted)
XX Denotes Finish.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY AR Pickets

64 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
