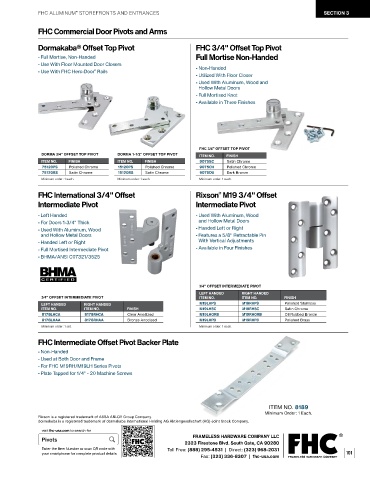

Page 103 - FAL24R Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 3
®
FHC Commercial Door Pivots and Arms

Dormakaba® Offset Top Pivot FHC 3/4" Offset Top Pivot
- Full Mortise, Non-Handed Full Mortise Non-Handed
- Use With Floor Mounted Door Closers - Non-Handed
- Use With FHC Herc-Door Rails
®
- Utilized With Floor Closer
- Used With Aluminum, Wood and
Hollow Metal Doors
- Full Mortised Knot
- Available in Three Finishes

FHC 3/4" OFFSET TOP PIVOT
DORMA 3/4" OFFSET TOP PIVOT DORMA 1-1/2" OFFSET TOP PIVOT ITEM NO. FINISH
ITEM NO. FINISH ITEM NO. FINISH 9075SC Satin Chrome
75120PS Polished Chrome 15120PS Polished Chrome 9075CH Polished Chrome
75120BS Satin Chrome 15120BS Satin Chrome 9075DU Dark Bronze
Minimum order: 1 each. Minimum order: 1 each. Minimum order: 1 each.

FHC International 3/4" Offset Rixson M19 3/4" Offset
®
Intermediate Pivot Intermediate Pivot

- Left Handed - Used With Aluminum, Wood
- For Doors 1-3/4" Thick and Hollow Metal Doors
- Used With Aluminum, Wood - Handed Left or Right
and Hollow Metal Doors - Features a 5/8" Retractable Pin
- Handed Left or Right With Vertical Adjustments
- Full Mortised Intermediate Pivot - Available in Four Finishes
- BHMA/ANSI C07321/3525

3/4" OFFSET INTERMEDIATE PIVOT
LEFT HANDED RIGHT HANDED
3/4" OFFSET INTERMEDIATE PIVOT ITEM NO. ITEM NO. FINISH
LEFT HANDED RIGHT HANDED M19LHPS M19RHPS Polished Stainless
ITEM NO. ITEM NO. FINISH M19LHSC M19RHSC Satin Chrome
8178LHCA 8178RHCA Clear Anodized M19LHORB M19RHORB Oil Rubbed Bronze
8178LHAA 8178RHAA Bronze Anodized M19LHPB M19RHPB Polished Brass
Minimum order: 1 set. Minimum order: 1 each.

FHC Intermediate Offset Pivot Backer Plate
- Non-Handed
- Used at Both Door and Frame
- For FHC M19RH/M19LH Series Pivots
- Plate Tapped for 1/4" - 20 Machine Screws

ITEM NO. 8189
Minimum Order: 1 Each.
Rixson is a registered trademark of ASSA ABLOY Group Company.
dormakaba is a registered trademark of dormakaba International Holding AG Aktiengesellschaft (AG) Joint Stock Company.
visit fhc-usa.com to search for
Pivots FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 101
