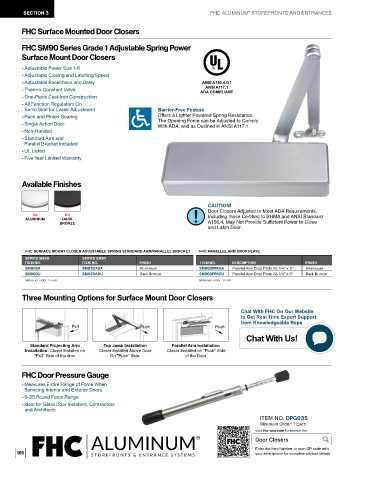

Page 108 - FAL24R Storefronts and Entrances
P. 108

SECTION 3                                                     FHC ALUMINUM  STOREFRONTS AND ENTRANCES
                                                                                   ®
        FHC Surface Mounted Door Closers


        FHC SM90 Series Grade 1 Adjustable Spring Power
        Surface Mount Door Closers
           - Adjustable Power Size 1-6
           - Adjustable Closing and Latching Speed
           - Adjustable Backcheck and Delay                         ANSI A156.4 G1
                                                                     ANSI A117.1
           - Thermo-Constant Valve                                 ADA COMPLIANT
           - One-Piece Cast-Iron Construction
           -  All Function Regulators On
         Same Side for Easier Adjustment             Barrier-Free Feature
           - Rack and Pinion Gearing                 Offers a Lighter Powered Spring Resistance.
           - Single Action Door                      The Opening Force can be Adjusted to Comply
                                                     With ADA, and as Outlined in ANSI A117.1.
           - Non-Handed
           -  Standard Arm and
         Parallel Bracket Included
           - UL Listed
           - Five Year Limited Warranty



        Available Finishes



                                                                      CAUTION!
                                                                      Door Closers Adjusted to Meet ADA Requirements,
            SA        DU
         ALUMINUM     DARK                                            Including those Certified to BHMA and ANSI Standard
                     BRONZE                                           A156.4, May Not Provide Sufficient Power to Close
                                                                      and Latch Door.


         FHC SURFACE MOUNT CLOSER ADJUSTABLE SPRING STANDARD ARM/PARALLEL BRACKET   FHC PARALLEL ARM DROP PLATE
         SERIES SM90        SERIES SM92
         ITEM NO.           ITEM NO.           FINISH               ITEM NO.  DESCRIPTION             FINISH
         SM90SA             SM92DASA           Aluminum            SM90DPPASA  Parallel Arm Drop Plate 12-1/4" x 5"  Aluminum
         SM90DU             SM92DADU           Dark Bronze         SM90DPPADU  Parallel Arm Drop Plate 12-1/4” x 5”  Dark Bronze
         Minimum order: 1 each.                                    Minimum order: 1 each.

        Three Mounting Options for Surface Mount Door Closers


                                                                                 Chat With FHC On Our Website
                                                                                 to Get Real Time Expert Support
                                                                                 from Knowledgeable Reps
                         Pull                  Push                     Push
                                                                                  Chat With Us!

           Standard Projecting Arm    Top Jamb Installation  Parallel Arm Installation
         Installation: Closer Installed on   Closer Installed Above Door    Closer Installed on "Push" Side
            "Pull" Side of the door   On "Push" Side.         of the Door

        FHC Door Pressure Gauge
           -  Measures Entire Range of Force When
         Servicing Interior and Exterior Doors
           - 0-35 Pound Force Range
           -  Ideal for Glass Door Installers, Contractors
         and Architects
                                                                                       ITEM NO. DPG035
                                                                                       Minimum Order: 1 Each.
                                                                                     visit fhc-usa.com to search for
                                                                                     Door Closers
                                                                                     Enter the Item Number or scan QR code with
       106                                                                           your smartphone for complete product details
