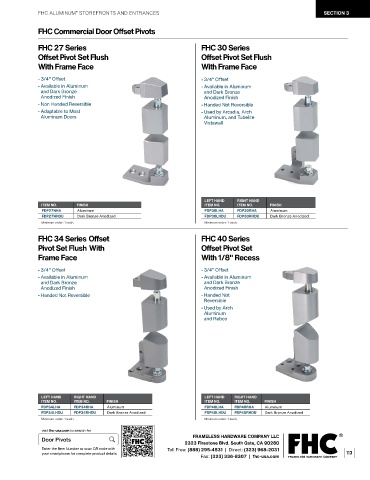

Page 115 - FAL24R Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 3
®
FHC Commercial Door Offset Pivots

FHC 27 Series FHC 30 Series
Offset Pivot Set Flush Offset Pivot Set Flush
With Frame Face With Frame Face

- 3/4" Offset - 3/4" Offset
- Available in Aluminum - Available in Aluminum
and Dark Bronze and Dark Bronze
Anodized Finish Anodized Finish
- Non Handed Reversible - Handed Not Reversible
- Adaptable to Most - Used by Arcadia, Arch
Aluminum Doors Aluminum, and Tubelite
Vistawall

LEFT HAND RIGHT HAND
ITEM NO. FINISH ITEM NO. ITEM NO. FINISH
FDP27NHA Aluminum FDP30LHA FDP30RHA Aluminum
FDP27NHDU Dark Bronze Anodized FDP30LHDU FDP30RHDU Dark Bronze Anodized
Minimum order: 1 each. Minimum order: 1 each.
FHC 34 Series Offset FHC 40 Series
Pivot Set Flush With Offset Pivot Set
Frame Face With 1/8" Recess

- 3/4" Offset - 3/4" Offset
- Available in Aluminum - Available in Aluminum
and Dark Bronze and Dark Bronze
Anodized Finish Anodized Finish
- Handed Not Reversible - Handed Not
Reversible
- Used by Arch
Aluminum
and Rebco

LEFT HAND RIGHT HAND LEFT HAND RIGHT HAND
ITEM NO. ITEM NO. FINISH ITEM NO. ITEM NO. FINISH
FDP34LHA FDP34RHA Aluminum FDP40LHA FDP40RHA Aluminum
FDP34LHDU FDP34RHDU Dark Bronze Anodized FDP40LHDU FDP40RHDU Dark Bronze Anodized
Minimum order: 1 each. Minimum order: 1 each.
