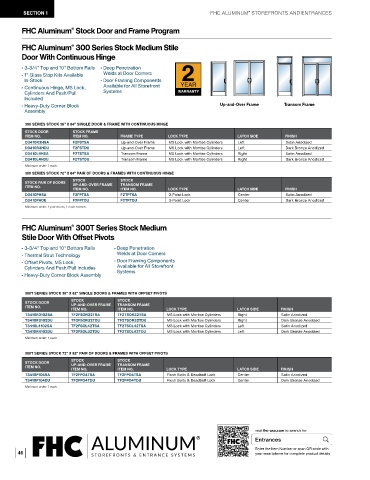

Page 48 - FAL24R Storefronts and Entrances

SECTION 1 FHC ALUMINUM STOREFRONTS AND ENTRANCES
®
FHC Aluminum Stock Door and Frame Program
®

FHC Aluminum 300 Series Stock Medium Stile
®
Door With Continuous Hinge
- 3-3/4" Top and 10" Bottom Rails - Deep Penetration
- 1" Glass Stop Kits Available Welds at Door Corners
In-Stock - Door Framing Components
- Continuous Hinge, MS Lock, Available for All Storefront
Cylinders And Push/Pull Systems
Included
- Heavy-Duty Corner Block Up-and-Over Frame Transom Frame
Assembly

300 SERIES STOCK 36" X 84" SINGLE DOOR & FRAME WITH CONTINUOUS HINGE
STOCK DOOR STOCK FRAME
ITEM NO. ITEM NO. FRAME TYPE LOCK TYPE LATCH SIDE FINISH
D3410R3HSA F2FSTSA Up-and-Over Frame MS Lock with Mortise Cylinders Left Satin Anodized
D3410R3HDU F2FSTDU Up-and-Over Frame MS Lock with Mortise Cylinders Left Dark Bronze Anodized
D3410L4HSA F2TSTSA Transom Frame MS Lock with Mortise Cylinders Right Satin Anodized
D3410L4HDU F2TSTDU Transom Frame MS Lock with Mortise Cylinders Right Dark Bronze Anodized
Minimum order: 1 each.
300 SERIES STOCK 72" X 84" PAIR OF DOORS & FRAMES WITH CONTINUOUS HINGE
STOCK STOCK
STOCK PAIR OF DOORS
ITEM NO. UP-AND-OVER FRAME TRANSOM FRAME
ITEM NO. ITEM NO. LOCK TYPE LATCH SIDE FINISH
D3410PHSA F2FPTSA F2TPTSA 3-Point Lock Center Satin Anodized
D3410PHDU F2FPTDU F2TPTDU 3-Point Lock Center Dark Bronze Anodized
Minimum order: 1 pair doors, 1 each frames.

FHC Aluminum 300T Series Stock Medium
®
Stile Door With Offset Pivots
- 3-3/4" Top and 10" Bottom Rails - Deep Penetration
- Thermal Strut Technology Welds at Door Corners
- Offset Pivots, MS Lock, - Door Framing Components
Cylinders And Push/Pull Includes Available for All Storefront
- Heavy-Duty Corner Block Assembly Systems

300T SERIES STOCK 36" X 82" SINGLE DOORS & FRAMES WITH OFFSET PIVOTS
STOCK DOOR STOCK STOCK
TRANSOM FRAME
UP-AND-OVER FRAME
ITEM NO. ITEM NO. ITEM NO. LOCK TYPE LATCH SIDE FINISH
T3410R3102SA TF2FSOR32TSA TF2TSOR32TSA MS Lock with Mortise Cylinders Right Satin Anodized
T3410R3102DU TF2FSOR32TDU TF2TSOR32TDU MS Lock with Mortise Cylinders Right Dark Bronze Anodized
T3410L4102SA TF2FSOL42TSA TF2TSOL42TSA MS Lock with Mortise Cylinders Left Satin Anodized
T3410R4102DU TF2FSOL32TDU TF2TSOL42TDU MS Lock with Mortise Cylinders Left Dark Bronze Anodized
Minimum order: 1 each.
300T SERIES STOCK 72" X 82" PAIR OF DOORS & FRAMES WITH OFFSET PIVOTS
STOCK DOOR STOCK STOCK
UP-AND-OVER FRAME
TRANSOM FRAME
ITEM NO. ITEM NO. ITEM NO. LOCK TYPE LATCH SIDE FINISH
T3410P104SA TF2FPO4TSA TF2FPO4TSA Flush Bolts & Deadbolt Lock Center Satin Anodized
T3410P104DU TF2FPO4TDU TF2FPO4TDU Flush Bolts & Deadbolt Lock Center Dark Bronze Anodized
Minimum order: 1 each.

visit fhc-usa.com to search for
Entrances
Enter the Item Number or scan QR code with
46 your smartphone for complete product details
