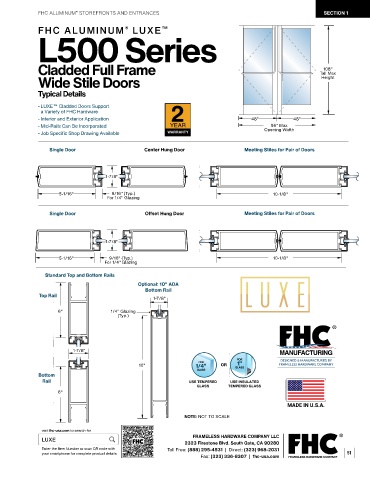

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 1
®
FHC ALUMINUM LUXE
™
®
L500 Series

Cladded Full Frame Tall Max
108"
Wide Stile Doors Height

Typical Details

- LUXE™ Cladded Doors Support
a Variety of FHC Hardware
- Interior and Exterior Application 48" 48"
- Mid-Rails Can Be Incorporated 96" Max
- Job Specific Shop Drawing Available Opening Width

Single Door Center Hung Door Meeting Stiles for Pair of Doors

1-7/8"

5-1/16" 9/16" (Typ.) 10-1/8"
For 1/4" Glazing

Single Door Offset Hung Door Meeting Stiles for Pair of Doors

1-7/8"

5-1/16" 9/16" (Typ.) 10-1/8"
For 1/4" Glazing
Standard Top and Bottom Rails
Optional: 10" ADA
Bottom Rail
Top Rail
1-7/8"

6" 1/4" Glazing
(Typ.)

1-7/8"
FOR
FOR 1" DESIGNED & MANUFACTURED BY
10" 1/4" OR GLASS FRAMELESS HARDWARE COMPANY
GLASS
Bottom
Rail USE TEMPERED USE INSULATED
GLASS TEMPERED GLASS
6"

NOTE: NOT TO SCALE
