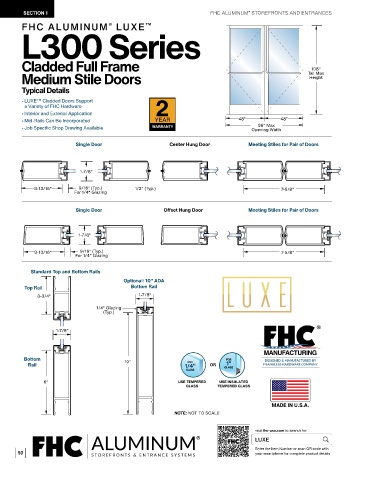

SECTION 1                                                     FHC ALUMINUM  STOREFRONTS AND ENTRANCES
                                                                                   ®
        FHC ALUMINUM  LUXE                       ™
                                     ®
        L300 Series




        Cladded Full Frame                                                                              108"
        Medium Stile Doors                                                                             Tall Max
                                                                                                       Height

        Typical Details
           -  LUXE™ Cladded Doors Support
         a Variety of FHC Hardware
           - Interior and Exterior Application
           - Mid-Rails Can Be Incorporated                                      48"           48"
                                                                                      96" Max
           - Job Specific Shop Drawing Available                                    Opening Width

                          Single Door                    Center Hung Door          Meeting Stiles for Pair of Doors




                            1-7/8"

            3-13/16"       9/16" (Typ.)       1/2" (Typ.)                                     7-5/8"
                          For 1/4" Glazing


                          Single Door                  Offset Hung Door            Meeting Stiles for Pair of Doors



                           1-7/8"

            3-13/16"        9/16" (Typ.)                                                      7-5/8"
                          For 1/4" Glazing

           Standard Top and Bottom Rails
                                          Optional: 10" ADA
         Top Rail                           Bottom Rail
             3-3/4"                            1-7/8"

                                 1/4" Glazing
                                   (Typ.)


                    1-7/8"



         Bottom                           10"                               FOR          DESIGNED & MANUFACTURED BY
                                                               FOR
          Rail                                                1/4"    OR    1"          FRAMELESS HARDWARE COMPANY
                                                               GLASS       GLASS
               6"                                           USE TEMPERED   USE INSULATED
                                                               GLASS     TEMPERED GLASS



                                                           NOTE: NOT TO SCALE


                                                                                     visit fhc-usa.com to search for
                                                                                     LUXE
                                                                                     Enter the Item Number or scan QR code with
       50                                                                            your smartphone for complete product details
