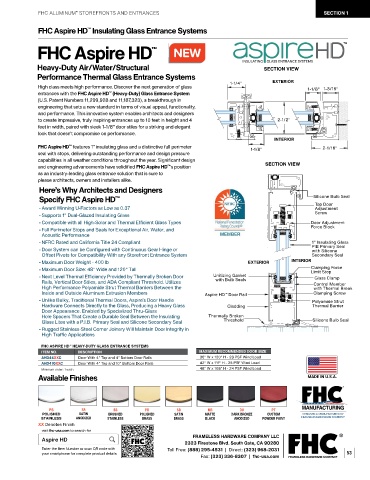

Page 55 - FAL24R Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 1
®
FHC Aspire HD Insulating Glass Entrance Systems
™
FHC Aspire HD ™

Heavy-Duty Air/Water/Structural SECTION VIEW
Performance Thermal Glass Entrance Systems
High class meets high performance. Discover the next generation of glass 1-1/4" EXTERIOR 1-1/8" 1-3/16"
entrances with the FHC Aspire HD (Heavy-Duty) Glass Entrance System
™
(U.S. Patent Numbers 11,299,928 and 11,187,323), a breakthrough in
engineering that sets a new standard in terms of visual appeal, functionality,
and performance. This innovative system enables architects and designers
to create impressive, truly inspiring entrances up to 10 feet in height and 4 2-1/2"
feet in width, paired with sleek 1-1/8" door stiles for a striking and elegant
look that doesn’t compromise on performance.
INTERIOR
FHC Aspire HD features 1” insulating glass and a distinctive full perimeter 1-1/8" 2-1/16"
™
seal with stops, delivering outstanding performance and design pressure
capabilities in all weather conditions throughout the year. Significant design
and engineering advancements have solidified FHC Aspire HD ’s position SECTION VIEW
™
as an industry-leading glass entrance solution that is sure to
please architects, owners and installers alike.
Here’s Why Architects and Designers
Specify FHC Aspire HD ™ Silicone Bulb Seal
- Award Winning U-Factors as Low as 0.37 Top Door
Adjustment
- Supports 1" Dual-Glazed Insulating Glass Screw
- Compatible with all High-Solar and Thermal Efficient Glass Types Door Adjustment
- Full Perimeter Stops and Seals for Exceptional Air, Water, and Force Block
Acoustic Performance
- NFRC Rated and California Title 24 Compliant 1" Insulating Glass
- Door System can be Configured with Continuous Gear Hinge or PIB Primary Seal
with Silicone
Offset Pivots for Compatibility With any Storefront Entrance System Secondary Seal
- Maximum Door Weight - 400 lb EXTERIOR INTERIOR
- Maximum Door Size: 48" Wide and 120" Tall Clamping Force
Limit Stop
- Next Level Thermal Efficiency Provided by Thermally Broken Door Unitizing Gasket Glass Clamp
Rails, Vertical Door Stiles, and ADA Compliant Threshold. Utilizes with Bulb Seals Control Member
High Performance Polyamide Strut Thermal Barriers Between the with Thermal Break
Inside and Outside Aluminum Extrusion Members Aspire HD Door Rail Clamping Screw
™
- Unlike Bulky, Traditional Thermal Doors, Aspire’s Door Handle Polyamide Strut
Hardware Connects Directly to the Glass, Producing a Heavy Glass Cladding Thermal Barrier
Door Appearance. Enabled by Specialized Thru-Glass
Hole Spacers That Create a Durable Seal Between the Insulating Thermally Broken
Glass Lites with a P.I.B. Primary Seal and Silicone Secondary Seal Threshold Silicone Bulb Seal
- Rugged Stainless-Steel Corner Joinery Will Maintain Door Integrity in
High Traffic Applications

FHC ASPIRE HD ™ HEAVY-DUTY GLASS ENTRANCE SYSTEMS
ITEM NO. DESCRIPTION MAXIMUM RECOMMENDED DOOR SIZE
AHD44XXC Door With 4" Top and 4" Bottom Door Rails 36" W x 120" H - 23 PSF Wind Load
AHD410XXC Door With 4" Top and 10" Bottom Door Rails 42" W x 111" H - 25 PSF Wind Load
Minimum order: 1 each. 48" W x 108" H - 24 PSF Wind Load
Available Finishes

PS SA BS PB SB MB DU PT
POLISHED SATIN BRUSHED POLISHED SATIN MATTE DARK BRONZE CUSTOM DESIGNED & MANUFACTURED BY
STAINLESS ANODIZED STAINLESS BRASS BRASS BLACK ANODIZED POWDER PAINT FRAMELESS HARDWARE COMPANY
XX Denotes Finish
visit fhc-usa.com to search for
Aspire HD FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 53
Fax: (323) 336-8307 | fhc-usa.com
