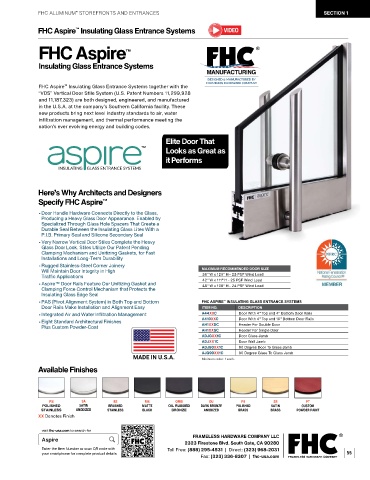

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 1
®
FHC Aspire Insulating Glass Entrance Systems
™
FHC Aspire ™

Insulating Glass Entrance Systems

DESIGNED & MANUFACTURED BY
FRAMELESS HARDWARE COMPANY
FHC Aspire Insulating Glass Entrance Systems together with the
™
“VDS” Vertical Door Stile System (U.S. Patent Numbers 11,299,928
and 11,187,323) are both designed, engineered, and manufactured
in the U.S.A. at the company’s Southern California facility. These
new products bring next level industry standards to air, water
infiltration management, and thermal performance meeting the
nation’s ever evolving energy and building codes.

Elite Door That
Looks as Great as
it Performs

Here’s Why Architects and Designers
Specify FHC Aspire ™
- Door Handle Hardware Connects Directly to the Glass,
Producing a Heavy Glass Door Appearance. Enabled by
Specialized Through Glass Hole Spacers That Create a
Durable Seal Between the Insulating Glass Lites With a
P.I.B. Primary Seal and Silicone Secondary Seal
- Very Narrow Vertical Door Stiles Complete the Heavy
Glass Door Look. Stiles Utilize Our Patent Pending
Clamping Mechanism and Unitizing Gaskets, for Fast
Installations and Long-Term Durability
- Rugged Stainless-Steel Corner Joinery
Will Maintain Door Integrity in High MAXIMUM RECOMMENDED DOOR SIZE
Traffic Applications 36" W x 120" H - 23 PSF Wind Load
- Aspire™ Door Rails Feature Our Unitizing Gasket and 42" W x 111" H - 25 PSF Wind Load
Clamping Force Control Mechanism that Protects the 48" W x 108" H - 24 PSF Wind Load
Insulating Glass Edge Seal
- PAS (Pivot Alignment System) in Both Top and Bottom FHC ASPIRE ™ INSULATING GLASS ENTRANCE SYSTEMS
Door Rails Make Installation and Alignment Easy ITEM NO. DESCRIPTION
- Integrated Air and Water Infiltration Management A44XXC Door With 4" Top and 4" Bottom Door Rails
- Eight Standard Architectural Finishes A410XXC Door With 4" Top and 10" Bottom Door Rails
Plus Custom Powder-Coat AH1XXDC Header For Double Door
®
AH1XXSC Header For Single Door
ADJGXX1C Door Glass Jamb
ADJXX1C Door Wall Jamb
ADJ90XX1C 90 Degree Door To Glass Jamb
AJG90XX1C 90 Degree Glass To Glass Jamb
Minimum order: 1 each.
Available Finishes
®

PS SA BS MB 0RB DU PB SB PT
POLISHED SATIN BRUSHED MATTE OIL RUBBED DARK BRONZE POLISHED SATIN CUSTOM
STAINLESS ANODIZED STAINLESS BLACK BRONZE ANODIZED BRASS BRASS POWDER PAINT
XX Denotes Finish
