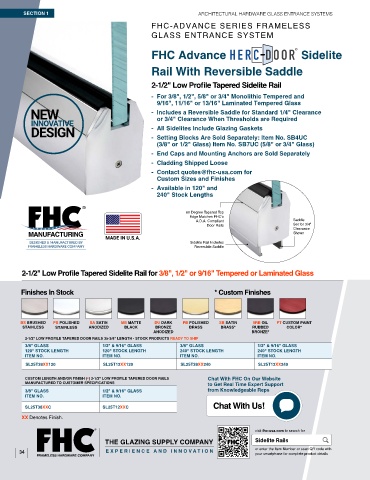

Page 42 - FAH23R Architectural Hardware Catalog

SECTION 1 ARCHITECTURAL HARDWARE GLASS ENTRANCE SYSTEMS

FHC-ADVANCE SERIES FRAMELESS
GLASS ENTRANCE SYSTEM

®
FHC Advance Sidelite

Rail With Reversible Saddle

2-1/2" Low Profile Square Sidelite Rail
- For 3/8", 1/2", 5/8" or 3/4" Monolithic Tempered and
9/16", 11/16" or 13/16" Laminated Tempered Glass
- Includes a Reversible Saddle for Standard 1/4" Clearance
or 3/4" Clearance When Thresholds are Required
- All Sidelites Include Glazing Gaskets
- Setting Blocks Are Sold Separately: Item No. SB4UC
(3/8" or 1/2" Glass) Item No. SB7UC (5/8" or 3/4" Glass)
- End Caps and Mounting Anchors are Sold Separately
- Cladding Shipped Loose
- Contact quotes@fhc-usa.com for
Custom Sizes and Finishes
- Available in 120" and
240" Stock Lengths

Saddle
Set for 3/4"
New Modern Clearance
Crisp Corner Shown
Design
Sidelite Rail Includes
Reversible Saddle

2-1/2" Low Profile Square Sidelite Rail for 3/8", 1/2" or 9/16" Tempered or Laminated Glass

Finishes In Stock * Custom Finishes

BS BRUSHED PS POLISHED SA SATIN MB MATTE DU DARK PB POLISHED SB SATIN 0RB OIL PT CUSTOM PAINT
STAINLESS STAINLESS ANODIZED BLACK BRONZE BRASS BRASS* RUBBED COLOR*
ANODIZED BRONZE*
2-1/2" LOW PROFILE SQUARE SIDELITE RAILS - STOCK PRODUCTS READY TO SHIP
3/8" GLASS 1/2" & 9/16" GLASS 3/8" GLASS 1/2" & 9/16" GLASS
120" STOCK LENGTH 120" STOCK LENGTH 240" STOCK LENGTH 240" STOCK LENGTH
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
SL25S38XX120 SL25S12BS120 SL25S38BS240 SL25S12BS240

CUSTOM LENGTH AND/OR FINISH ( ) 2-1/2" LOW PROFILE SQUARE SIDELITE RAILS Chat With FHC On Our Website
*
MANUFACTURED TO CUSTOMER SPECIFICATION to Get Real Time Expert Support
3/8" GLASS 1/2" & 9/16" GLASS from Knowledgeable Reps
ITEM NO. ITEM NO.
Chat With Us!
SL25S38XXC SL25S12XXC
XX Denotes Finish.
visit fhc-usa.com to search for

THE GLAZING SUPPLY COMPANY Sidelite Rails
or enter the Item Number or scan QR code with
36 EXPERIENCE AND INNOV A TION your smartphone for complete product details

4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Fax: (323) 336-8307 | fhc-usa.com
