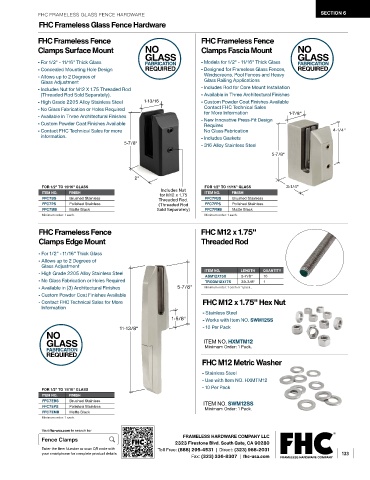

Page 135 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS FENCE HARDWARE SECTION 6
FHC Frameless Glass Fence Hardware

FHC Frameless Fence FHC Frameless Fence
Clamps Surface Mount NO Clamps Fascia Mount NO
GLASS GLASS
- For 1/2" - 11/16" Thick Glass FABRICATION - Models for 1/2" - 11/16" Thick Glass FABRICATION
- Concealed Mounting Hole Design REQUIRED - Designed for Frameless Glass Fences, REQUIRED
- Allows up to 2 Degrees of Windscreens, Pool Fences and Heavy
Glass Adjustment Glass Railing Applications
- Includes Nut for M12 X 1.75 Threaded Rod - Includes Rod for Core Mount Installation
(Threaded Rod Sold Separately). - Available in Three Architectural Finishes
- High Grade 2205 Alloy Stainless Steel 1-13/16 - Custom Powder Coat Finishes Available
- No Glass Fabrication or Holes Required Contact FHC Technical Sales
for More Information
- Available in Three Architectural Finishes - New Innovative Press-Fit Design 1-7/8"
- Custom Powder Coat Finishes Available Requires
- Contact FHC Technical Sales for more No Glass Fabrication 4-1/4"
information. - Includes Gaskets
5-7/8" - 316 Alloy Stainless Steel
5-7/8"

2"
FOR 1/2" TO 11/16" GLASS Includes Nut FOR 1/2" TO 11/16" GLASS 3-1/4"
ITEM NO. FINISH for M12 x 1.75 ITEM NO. FINISH
FFC7BS Brushed Stainless Threaded Rod. FFC7FBS Brushed Stainless
FFC7PS Polished Stainless (Threaded Rod FFC7FPS Polished Stainless
FFC7MB Matte Black Sold Separately) FFC7FMB Matte Black
Minimum order: 1 each. Minimum order: 1 each.

FHC Frameless Fence FHC M12 x 1.75"
Clamps Edge Mount Threaded Rod

- For 1/2" - 11/16" Thick Glass
- Allows up to 2 Degrees of
Glass Adjustment
- High Grade 2205 Alloy Stainless Steel ITEM NO. LENGTH QUANTITY
10
5-7/8"
ASM12X150
- No Glass Fabrication or Holes Required TRODM12X175 39-3/8" 1
- Available in (3) Architectural Finishes 5-7/8" Minimum order: 1 each or 1 pack..
- Custom Powder Coat Finishes Available
- Contact FHC Technical Sales for More FHC M12 x 1.75" Hex Nut
Information
- Stainless Steel
1-5/8" - Works with Item NO. SWM12SS
11-13/8" - 10 Per Pack
NO
GLASS ITEM NO. HXMTM12
FABRICATION Minimum Order: 1 Pack.
REQUIRED
FHC M12 Metric Washer
- Stainless Steel
- Use with Item NO. HXMTM12
- 10 Per Pack
FOR 1/2" TO 11/16" GLASS
ITEM NO. FINISH
FFC7EBS Brushed Stainless ITEM NO. SWM12SS
FFC7EPS Polished Stainless Minimum Order: 1 Pack.
FFC7EMB Matte Black
Minimum order: 1 each.
Visit fhc-usa.com to search for
Fence Clamps FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 133
Fax: (323) 336-8307 | fhc-usa.com
