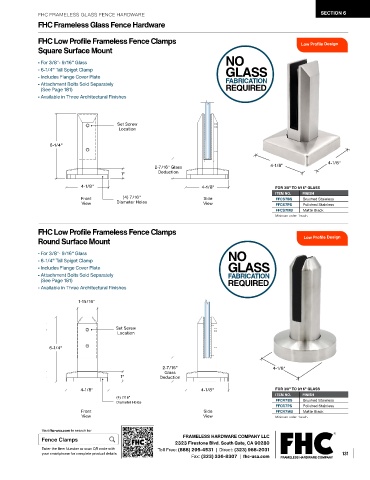

FHC FRAMELESS GLASS FENCE HARDWARE SECTION 6
FHC Frameless Glass Fence Hardware

FHC Low Profile Frameless Fence Clamps Low Profile Design
Square Surface Mount

- For 3/8"- 9/16" Glass NO
- 6-1/4" Tall Spigot Clamp GLASS
- Includes Flange Cover Plate
- Attachment Bolts Sold Separately FABRICATION
(See Page 181) REQUIRED
- Available in Three Architectural Finishes

Set Screw
Location

6-1/4"

4-1/8"
2-7/16" Glass 4-1/8"
1" Deduction

4-1/8" 4-1/8" FOR 3/8" TO 9/16" GLASS
ITEM NO. FINISH
Front (4) 7/16" Side FFCS7BS Brushed Stainless
View Diameter Holes View FFCS7PS Polished Stainless
FFCS7MB Matte Black
Minimum order: 1 each.

FHC Low Profile Frameless Fence Clamps
Round Surface Mount Low Profile Design

- For 3/8"- 9/16" Glass NO
- 6-1/4" Tall Spigot Clamp
- Includes Flange Cover Plate GLASS
- Attachment Bolts Sold Separately FABRICATION
(See Page 181) REQUIRED
- Available in Three Architectural Finishes

1-15/16"

Set Screw
Location

6-1/4"

2-7/16" 4-1/8"
Glass
1" Deduction

4-1/8" 4-1/8" FOR 3/8" TO 9/16" GLASS
ITEM NO. FINISH
(4) 7/16" FFCR7BS Brushed Stainless
Diameter Holes
FFCR7PS Polished Stainless
Front Side FFCR7MB Matte Black
View View Minimum order: 1 each.
