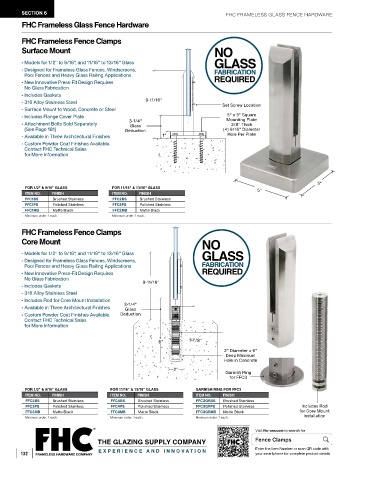

SECTION 6 FHC FRAMELESS GLASS FENCE HARDWARE
FHC Frameless Glass Fence Hardware

FHC Frameless Fence Clamps
Surface Mount NO

- Models for 1/2" to 9/16", and 11/16" to 13/16" Glass GLASS
- Designed for Frameless Glass Fences, Windscreens,
Pool Fences and Heavy Glass Railing Applications FABRICATION
- New Innovative Press-Fit Design Requires REQUIRED
No Glass Fabrication
- Includes Gaskets
- 316 Alloy Stainless Steel 9-11/16" Set Screw Location
- Surface Mount to Wood, Concrete or Steel
5" x 5" Square
- Includes Flange Cover Plate Mounting Plate
- Attachment Bolts Sold Separately 3-1/4" 3/8" Thick
Glass
(See Page 181) Deduction (4) 9/16" Diameter
- Available in Three Architectural Finishes 1" Hole Per Plate
- Custom Powder Coat Finishes Available.
Contact FHC Technical Sales
for More Information

5"
FOR 1/2" & 9/16" GLASS FOR 11/16" & 13/16" GLASS 5"
ITEM NO. FINISH ITEM NO. FINISH
FFC1BS Brushed Stainless FFC2BS Brushed Stainless
FFC1PS Polished Stainless FFC2PS Polished Stainless
FFC1MB Matte Black FFC2MB Matte Black
Minimum order: 1 each. Minimum order: 1 each.

FHC Frameless Fence Clamps
Core Mount NO

- Models for 1/2" to 9/16", and 11/16" to 13/16" Glass GLASS
- Designed for Frameless Glass Fences, Windscreens,
Pool Fences and Heavy Glass Railing Applications FABRICATION
- New Innovative Press-Fit Design Requires REQUIRED
No Glass Fabrication
- Includes Gaskets 9-11/16"
- 316 Alloy Stainless Steel
- Includes Rod for Core Mount Installation
- Available in Three Architectural Finishes 3-1/4"
Glass
- Custom Powder Coat Finishes Available. Deduction
Contact FHC Technical Sales
for More Information

6" 7-7/8"
2" Diameter x 6"
Deep Minimum
Hole in Concrete
2"
Garnish Ring
for FFC3
FOR 1/2" & 9/16" GLASS FOR 11/16" & 13/16" GLASS GARNISH RING FOR FFC3
ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
FFC3BS Brushed Stainless FFC4BS Brushed Stainless FFC3GRBS Brushed Stainless
FFC3PS Polished Stainless FFC4PS Polished Stainless FFC3GRPS Polished Stainless Includes Rod
FFC3MB Matte Black FFC4MB Matte Black FFC3GRMB Matte Black for Core Mount
Minimum order: 1 each. Minimum order: 1 each. Minimum order: 1 each. Installation
Visit fhc-usa.com to search for
Fence Clamps
