FHC FRAMELESS GLASS RAILINGS SECTION 1

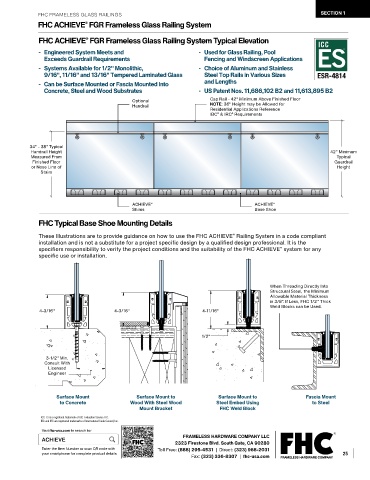

FHC ACHIEVE FGR Frameless Glass Railing System
®
FHC ACHIEVE FGR Frameless Glass Railing System Typical Elevation
®
ICC
ICC
- Engineered System Meets and - Used for Glass Railing, Pool
Exceeds Guardrail Requirements Fencing and Windscreen Applications
- Systems Available for 1/2" Monolithic, - Choice of Aluminum and Stainless
9/16", 11/16" and 13/16" Tempered Laminated Glass Steel Top Rails in Various Sizes ESR-4814
ESR-4814
- Can be Surface Mounted or Fascia Mounted Into and Lengths
Concrete, Steel and Wood Substrates - US Patent Nos. 11,686,102 B2 and 11,613,895 B2
Optional Cap Rail - 42" Minimum Above Finished Floor
Handrail NOTE: 36" Height may be Allowed for
Residential Applications Reference
IBC & IRC Requirements
®
®

34" - 38" Typical
Handrail Height 42" Minimum
Measured From Typical
Finished Floor Guardrail
or Nose Line of Height
Stairs

ACHIEVE ® ACHIEVE ®
Shims Base Shoe
FHC Typical Base Shoe Mounting Details

These Illustrations are to provide guidance on how to use the FHC ACHIEVE Railing System in a code compliant
®
installation and is not a substitute for a project specific design by a qualified design professional. It is the
specifiers responsibility to verify the project conditions and the suitability of the FHC ACHIEVE system for any
®
specific use or installation.

When Threading Directly Into
Structural Steel, the Minimum
Allowable Material Thickness
is 3/8". If Less, FHC 1/2" Thick
Weld Blocks can be Used.
4-3/16" 4-3/16" 4-11/16"

1/2"

3-1/2" Min.
Consult With
Licensed
Engineer

Surface Mount Surface Mount to Surface Mount to Fascia Mount
to Concrete Wood With Steel Wood Steel Embed Using to Steel
Mount Bracket FHC Weld Block
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
IBC and IRC are registered trademarks of International Code Council, Inc.
