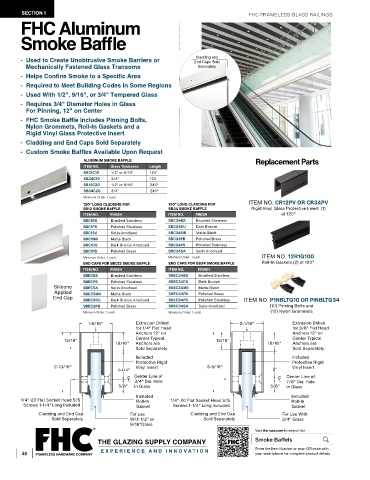

Page 50 - FGR26-Frameless-Glass-Railing

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC Aluminum

Smoke Baffle

Cladding and
- Used to Create Unobtrusive Smoke Barriers or End Caps Sold
Mechanically Fastened Glass Transoms Separately
- Helps Confine Smoke to a Specific Area
- Required to Meet Building Codes in Some Regions
- Used With 1/2", 9/16", or 3/4" Tempered Glass

- Requires 3/4" Diameter Holes in Glass
For Pinning, 12" on Center

- FHC Smoke Baffle Includes Pinning Bolts,
Nylon Grommets, Roll-In Gaskets and a
Rigid Vinyl Glass Protective Insert
- Cladding and End Caps Sold Separately
- Custom Smoke Baffles Available Upon Request

ALUMINUM SMOKE BAFFLE Replacement Parts
ITEM NO. Glass Thickness Length
SB12C10 1/2" or 9/16" 120"
SB34C10 3/4" 120
SB12C20 1/2" or 9/16" 240"
SB34C20 3/4" 240"
Minimum Order: 1 each.
ITEM NO. CR12PV OR CR34PV
120" LONG CLADDING FOR 120" LONG CLADDING FOR
SB12 SMOKE BAFFLE SB34 SMOKE BAFFLE Rigid Vinyl Glass Protective Insert (1)
ITEM NO. FINISH ITEM NO. FINISH at 120"
SBC1BS Brushed Stainless SBC34BS Brushed Stainless
SBC1PS Polished Stainless SBC34DU Dark Bronze
SBC1SA Satin Anodized SBC34MB Matte Black
SBC1MB Matte Black SBC34PB Polished Brass
SBC1DU Dark Bronze Anodized SBC34PS Polished Stainless
SBC1PB Polished Brass SBC34SA Satin Anodized
Minimum Order: 1 each. Minimum Order: 1 each. ITEM NO. 12R1G100
END CAPS FOR SBC12 SMOKE BAFFLE END CAPS FOR SB34 SMOKE BAFFLE Roll-In Gaskets (2) at 120"
ITEM NO. FINISH ITEM NO. FINISH
SBECBS Brushed Stainless SBEC34BS Brushed Stainless
SBECPS Polished Stainless SBEC34DU Dark Bronze
Silicone SBECSA Satin Anodized SBEC34MB Matte Black
Applied SBECSMB Matte Black SBEC34PB Polished Brass
End Cap SBECSDU Dark Bronze Anodized SBEC34PS Polished Stainless ITEM NO. P1NBLTG10 OR PINBLTG34
SBECSPB Polished Brass SBEC34SA Satin Anodized (10) Pinning Bolts and
Minimum Order: 1 each. Minimum Order: 1 each. (10) Nylon Grommets
1-9/16" Extrusion Drilled 2-1/16" Extrusion Drilled
for 1/4" Flat Head for 3/8" Flat Head

Anchors 12" on Anchors 12" on

13/16" Center Typical. 13/16" Center Typical.
15/16" Anchors are 15/16" Anchors are
Sold Separately. Sold Separately..

Included Included

Protective Rigid Protective Rigid
2-13/16" Vinyl Insert 3-9/16" Vinyl Insert
1-1/4" 2"
C L Center Line of C L Center Line of

C L 3/4" Dia. Hole 7/8" Dia. Hole
5/8" in Glass 5/8" in Glass
Included Included

1/4"-20 Flat Socket Head S/S Roll-In 1/4"-20 Flat Socket Head S/S Roll-In

Screws 1-1/4" Long Included Gasket Screws 1-1/4" Long Included Gasket
Cladding and End Cap For use Cladding and End Cap For Use With
Sold Separately With 1/2" or Sold Separately 3/4" Glass
9/16"Glass
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Smoke Baffels
48 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
