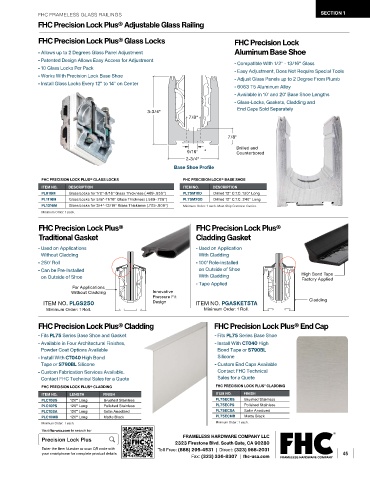

Page 47 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS RAILINGS SECTION 1
FHC Precision Lock Plus® Adjustable Glass Railing

FHC Precision Lock Plus® Glass Locks FHC Precision Lock

- Allows up to 2 Degrees Glass Panel Adjustment Aluminum Base Shoe
- Patented Design Allows Easy Access for Adjustment - Compatible With 1/2" - 13/16" Glass
- 10 Glass Locks Per Pack - Easy Adjustment, Does Not Require Special Tools
- Works With Precision Lock Base Shoe - Adjust Glass Panels up to 2 Degree From Plumb

- Install Glass Locks Every 12" to 14" on Center

- 6063 T5 Aluminum Alloy

- Available in 10' and 20' Base Shoe Lengths
- Glass-Locks, Gaskets, Cladding and

End Caps Sold Separately
3-3/4"
7/8"
7/8"
Drilled and
9/16" Counterbored
2-3/4"
Base Shoe Profile
FHC PRECISION LOCK PLUS® GLASS LOCKS FHC PRECISION LOCK® BASE SHOE
ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
PL916M Glass Locks for 1/2"-9/16" Glass Thickness (.469-.550") PL75M10D Drilled 12" C.T.C. 120" Long
PL1116M Glass Locks for 5/8"-11/16" Glass Thickness (.569-.726") PL75M20D Drilled 12" C.T.C. 240" Long
PL1316M Glass Locks for 3/4"-13/16" Glass Thickness (.705-.906") Minimum Order: 1 each. Must Ship Common Carrier.
Minimum Order: 1 pack.

FHC Precision Lock Plus® FHC Precision Lock Plus®
Traditional Gasket Cladding Gasket
- Used on Applications - Used on Application
Without Cladding With Cladding
- 250' Roll - 100' Role-Installed
- Can be Pre-Installed on Outside of Shoe
on Outside of Shoe With Cladding High Bond Tape
Factory Applied
- Tape Applied
For Applications
Without Cladding Innovative
Pressure Fit Cladding
ITEM NO. PLGS250 Design ITEM NO. PGASKET5TA
Minimum Order: 1 Roll. Minimum Order: 1 Roll.

FHC Precision Lock Plus® Cladding FHC Precision Lock Plus® End Cap
- Fits PL75 Series Base Shoe and Gasket - Fits PL75 Series Base Shoe
- Available in Four Architectural Finishes, - Install With CT040 High
Powder Coat Options Available Bond Tape or S790BL
- Install With CT040 High Bond Silicone
Tape or S790BL Silicone - Custom End Caps Available
- Custom Fabrication Services Available. Contact FHC Technical
Contact FHC Technical Sales for a Quote Sales for a Quote
FHC PRECISION LOCK PLUS® CLADDING FHC PRECISION LOCK PLUS ® CLADDING
ITEM NO. LENGTH FINISH ITEM NO. FINISH
PLC10BS 120" Long Brushed Stainless PL75ECBS Brushed Stainless
PLC10PS 120" Long Polished Stainless PL75ECPS Polished Stainless
PLC10SA 120" Long Satin Anodized PL75ECSA Satin Anodized
PLC10MB 120" Long Matte Black PL75ECMB Matte Black
Minimum Order: 1 each. Minimum Order: 1 each.
