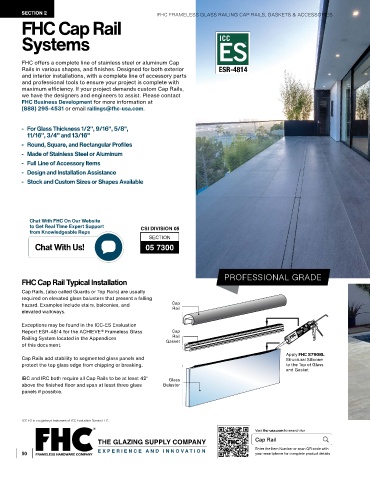

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Cap Rail

Systems ICC

FHC offers a complete line of stainless steel or aluminum Cap
Rails in various shapes, and finishes. Designed for both exterior ESR-4814
and interior installations, with a complete line of accessory parts
and professional tools to ensure your project is complete with
maximum efficiency. If your project demands custom Cap Rails,
we have the designers and engineers to assist. Please contact
FHC Business Development for more information at
(888) 295-4531 or email railings@fhc-usa.com.

- For Glass Thickness 1/2", 9/16", 5/8",
11/16", 3/4" and 13/16"
- Round, Square, and Rectangular Profiles
- Made of Stainless Steel or Aluminum
- Full Line of Accessory Items
- Design and Installation Assistance
- Stock and Custom Sizes or Shapes Available

Chat With FHC On Our Website
to Get Real Time Expert Support
from Knowledgeable Reps CSI DIVISION 05
SECTION
Chat With Us! 05 7300

FHC Cap Rail Typical Installation PROFESSIONAL GRADE
Cap Rails, (also called Guards or Top Rails) are usually
required on elevated glass balusters that present a falling
hazard. Examples include stairs, balconies, and Cap
elevated walkways. Rail
Exceptions may be found in the ICC-ES Evaluation
Report ESR-4814 for the ACHIEVE® Frameless Glass Cap
Railing System located in the Appendices Rail
of this document. Gasket
Apply FHC S790BL
Cap Rails add stability to segmented glass panels and Structural Silicone
protect the top glass edge from chipping or breaking. to the Top of Glass
and Gasket
IBC and IRC both require all Cap Rails to be at least 42" Glass
above the finished floor and span at least three glass Baluster
panels if possible.

ICC-ES is a registered trademark of ICC Evaluation Service LLC.
