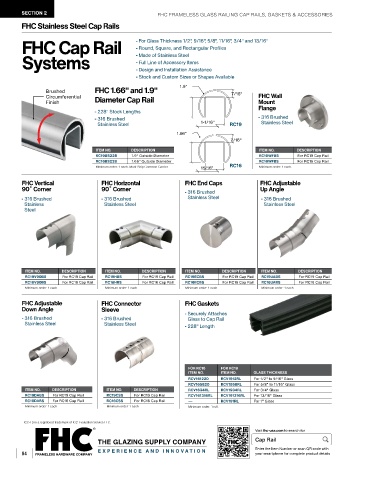

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Stainless Steel Cap Rails
FHC Stainless Steel Cap Rails
FHC Cap Rail - For Glass Thickness 1/2", 9/16", 5/8", 11/16", 3/4" and 13/16"
- Round, Square, and Rectangular Profiles
Systems - Made of Stainless Steel
- Full Line of Accessory Items
- Design and Installation Assistance
- Stock and Custom Sizes or Shapes Available

Brushed FHC 1.66" and 1.9" 1.9"
Circumferential Diameter Cap Rail 7/16" FHC Wall
Finish Mount
- 228" Stock Lengths Flange
- 316 Brushed - 316 Brushed
Stainless Steel 1-1/16" RC19 Stainless Steel
1.66"
7/16"
ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
RC19BS228 1.9" Outside Diameter RC19WFBS For RC19 Cap Rail
RC16BS228 1.66" Outside Diameter RC16WFBS For RC16 Cap Rail
Minimum order: 1 each. Must Ship Common Carrier 15/16" RC16 Minimum order: 1 each.

FHC Vertical FHC Horizontal FHC End Caps FHC Adjustable
90˚ Corner 90˚ Corner - 316 Brushed Up Angle
- 316 Brushed - 316 Brushed Stainless Steel - 316 Brushed
Stainless Stainless Steel Stainless Steel
Steel

ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
RC19V90BS For RC19 Cap Rail RC19HBS For RC19 Cap Rail RC19ECBS For RC19 Cap Rail RC19UABS For RC19 Cap Rail
RC16V90BS For RC16 Cap Rail RC16HBS For RC16 Cap Rail RC16ECBS For RC16 Cap Rail RC16UABS For RC16 Cap Rail
Minimum order: 1 each. Minimum order: 1 each. Minimum order: 1 each. Minimum order: 1 each.

FHC Adjustable FHC Connector FHC Gaskets
Down Angle Sleeve - Securely Attaches
- 316 Brushed - 316 Brushed Glass to Cap Rail
Stainless Steel Stainless Steel - 228" Length

FOR RC16 FOR RC19
ITEM NO. ITEM NO. GLASS THICKNESS
RCV161220 RCV1912RL For 1/2" to 9/16" Glass
RCV165820 RCV1958RL For 5/8" to 11/16" Glass
ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION RCV1634RL RCV1934RL For 3/4" Glass
RC19DABS For RC19 Cap Rail RC19CSS For RC19 Cap Rail RCV161316RL RCV191316RL For 13/16" Glass
RC16DABS For RC16 Cap Rail RC16CSS For RC16 Cap Rail --- RCV191RL For 1" Glass
Minimum order: 1 each. Minimum order: 1 each. Minimum order: 1 roll.

ICC-ES is a registered trademark of ICC Evaluation Service LLC.
Visit fhc-usa.com to search for
Cap Rail
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
54 EXPERIENCE AND INNOV A TION your smartphone for complete product details
