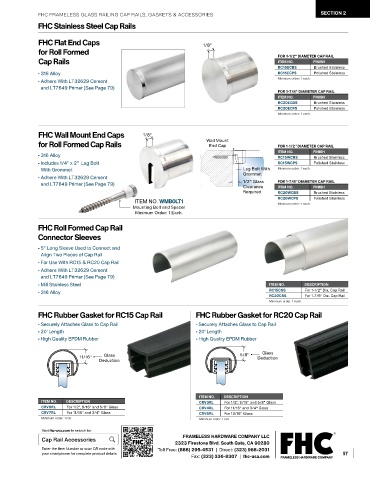

Page 59 - FGR26-Frameless-Glass-Railing

RC15
RC15
RC20
FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2 RC20
FHC Stainless Steel Cap Rails

FHC Flat End Caps 1/8"
for Roll Formed
Cap Rails FOR 1-1/2" DIAMETER CAP RAIL
ITEM NO.
FINISH
RC15ECBS Brushed Stainless
- 316 Alloy RC15ECPS Polished Stainless
- Adhere With LT32629 Cement Minimum order: 1 each.
and LT7649 Primer (See Page 79)
FOR 1-7/8" DIAMETER CAP RAIL
ITEM NO. FINISH
RC20ECBS Brushed Stainless
RC20ECPS Polished Stainless
Minimum order: 1 each.

FHC Wall Mount End Caps 1/8"
for Roll Formed Cap Rails Wall Mount FOR 1-1/2" DIAMETER CAP RAIL
End Cap
ITEM NO. FINISH
- 316 Alloy RC15WCBS Brushed Stainless
- Includes 1/4" x 2" Lag Bolt RC15WCPS Polished Stainless
With Grommet Lag Bolt With Minimum order: 1 each.
- Adhere With LT32629 Cement Grommet
and LT7649 Primer (See Page 79) 1/2" Glass FOR 1-7/8" DIAMETER CAP RAIL
Clearance
FINISH
ITEM NO.
Required RC20WCBS Brushed Stainless
ITEM NO. WMB0LT1 RC20WCPS Polished Stainless
Minimum order: 1 each.
Mounting Bolt and Spacer
Minimum Order: 1 Each.
FHC Roll Formed Cap Rail
Connector Sleeves
- 5" Long Sleeve Used to Connect and
Align Two Pieces of Cap Rail
- For Use With RC15 & RC20 Cap Rail
- Adhere With LT32629 Cement
and LT7649 Primer (See Page 79)
- Mill Stainless Steel ITEM NO. DESCRIPTION
- 316 Alloy RC15CSS For 1-1/2" Dia. Cap Rail
RC20CSS For 1-7/8" Dia. Cap Rail
Minimum order: 1 each.
FHC Rubber Gasket for RC15 Cap Rail FHC Rubber Gasket for RC20 Cap Rail
- Securely Attaches Glass to Cap Rail - Securely Attaches Glass to Cap Rail
- 20' Length - 20' Length
- High Quality EPDM Rubber - High Quality EPDM Rubber

Glass
11/16" Glass 5/8" Deduction
Deduction

ITEM NO. DESCRIPTION
ITEM NO. DESCRIPTION CRV3RL For 1/2", 9/16" and 5/8" Glass
CRV6RL For 1/2", 9/16" and 5/8" Glass CRV4RL For 11/16" and 3/4" Glass
CRV7RL For 11/16" and 3/4" Glass CRV5RL For 13/16" Glass
Minimum order: 1 roll. Minimum order: 1 roll.
