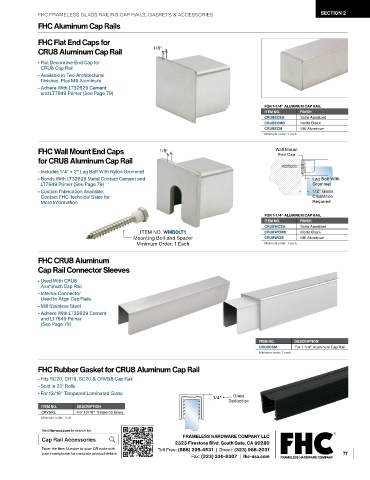

Page 79 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2
FHC Aluminum Cap Rails

FHC Flat End Caps for
CRU8 Aluminum Cap Rail 1/8"
- Flat Decorative End Cap for
CRU8 Cap Rail
- Available in Two Architectural
Finishes, Plus Mill Aluminum
- Adhere With LT32629 Cement
and LT7649 Primer (See Page 79)

FOR 1-1/4" ALUMINUM CAP RAIL
ITEM NO. FINISH
CRU8ECSA Satin Anodized
CRU8ECMB Matte Black
CRU8ECM Mill Aluminum
Minimum order: 1 each.

FHC Wall Mount End Caps 1/8" Wall Mount
End Cap
for CRU8 Aluminum Cap Rail

- Includes 1/4" x 2" Lag Bolt With Nylon Grommet
- Bonds With LT32629 Metal Contact Cement and Lag Bolt With
LT7649 Primer (See Page 79) Grommet
- Custom Fabrication Available, 1/2" Glass
Contact FHC Technical Sales for Clearance
More Information Required

FOR 1-1/4" ALUMINUM CAP RAIL
ITEM NO. FINISH
CRU8WCSA Satin Anodized
ITEM NO. WMB0LT1 CRU8WCMB Matte Black
Mounting Bolt and Spacer CRU8WCM Mill Aluminum
Minimum Order: 1 Each Minimum order: 1 each.

FHC CRU8 Aluminum
Cap Rail Connector Sleeves
- Used With CRU8
Aluminum Cap Rail
- Internal Connector
Used to Align Cap Rails
- Mill Stainless Steel
- Adhere With LT32629 Cement
and LT7649 Primer
(See Page 79)

ITEM NO. DESCRIPTION
CRU8CSM For 1-1/4" Aluminum Cap Rail
Minimum order: 1 each.

FHC Rubber Gasket for CRU8 Aluminum Cap Rail
- Fits RC20, CR19, SC20 & CRVG8 Cap Rail
- Sold in 20' Rolls
- For 13/16" Tempered Laminated Glass
1/4" Glass
Deduction
ITEM NO. DESCRIPTION
CRV5RL For 13/16" Tempered Glass
Minimum order: 1 roll.
Visit fhc-usa.com to search for
Cap Rail Accessories FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 77
