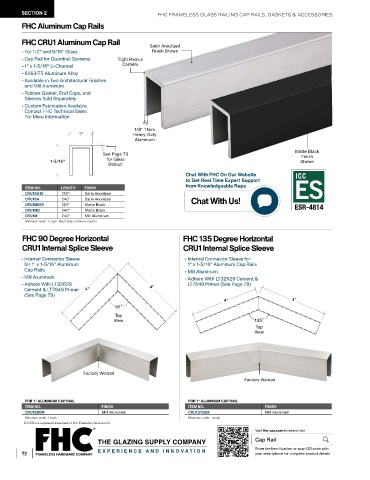

Page 74 - FGR26-Frameless-Glass-Railing

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Aluminum Cap Rails

FHC CRU1 Aluminum Cap Rail Satin Anodized
- For 1/2" and 9/16" Glass Finish Shown
- Cap Rail for Guardrail Systems Tight Radius
- 1" x 1-5/16" U-Channel Corners
- 6063-T5 Aluminum Alloy
- Available in Two Architectural Finishes
and Mill Aluminum
- Rubber Gasket, End Caps, and
Sleeves Sold Separately
- Custom Fabrication Available.
Contact FHC Technical Sales
For More Information

1/8" Thick
1" Heavy-Duty
Aluminum
Matte Black
See Page 73 Finish
1-5/16" for Glass Shown
Deduct
Chat With FHC On Our Website ICC
to Get Real Time Expert Support
from Knowledgeable Reps
ITEM NO. LENGTH FINISH
CRU1SA10 120" Satin Anodized
CRU1SA 240" Satin Anodized Chat With Us!
CRU1MB10 120" Matte Black ESR-4814
CRU1MB 240" Matte Black
CRU1M 240" Mill Aluminum
Minimum order: 1 each. Must Ship Common Carrier

FHC 90 Degree Horizontal FHC 135 Degree Horizontal
CRU1 Internal Splice Sleeve CRU1 Internal Splice Sleeve

- Internal Connector Sleeve - Internal Connector Sleeve for
for 1" x 1-5/16" Aluminum 1" x 1-5/16" Aluminum Cap Rails
Cap Rails - Mill Aluminum
- Mill Aluminum - Adhere With LT32629 Cement &
- Adhere With LT32629 LT7649 Primer (See Page 79)
Cement & LT7649 Primer 4" 4"
(See Page 79)
4" 4"
90˚
Top
View 135˚
Top
View

Factory Welded
Factory Welded

FOR 1" ALUMINUM CAP RAIL FOR 1" ALUMINUM CAP RAIL
ITEM NO. FINISH ITEM NO. FINISH
CRU1S90M Mill Aluminum CRU1S135M Mill Aluminum
Minimum order: 1 each. Minimum order: 1 each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
Visit fhc-usa.com to search for
Cap Rail
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
72 EXPERIENCE AND INNOV A TION your smartphone for complete product details
