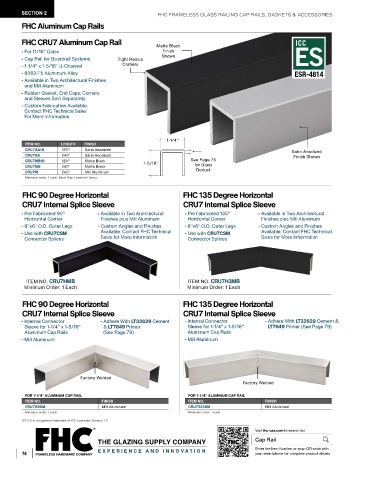

Page 76 - FGR26-Frameless-Glass-Railing

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Aluminum Cap Rails

FHC CRU7 Aluminum Cap Rail Matte Black ICC
- For 11/16" Glass Finish
- Cap Rail for Guardrail Systems Tight Radius Shown
- 1-1/4" x 1-5/16" U-Channel Corners
- 6063-T5 Aluminum Alloy ESR-4814
- Available in Two Architectural Finishes
and Mill Aluminum
- Rubber Gasket, End Caps, Corners
and Sleeves Sold Separately
- Custom Fabrication Available.
Contact FHC Technical Sales
For More Information

1-1/4"
ITEM NO. LENGTH FINISH
CRU7SA10 120" Satin Anodized Satin Anodized
CRU7SA 240" Satin Anodized Finish Shown
CRU7MB10 120" Matte Black 1-5/16" See Page 75
CRU7MB 240" Matte Black for Glass
CRU7M 240" Mill Aluminum Deduct
Minimum order: 1 each. Must Ship Common Carrier

FHC 90 Degree Horizontal FHC 135 Degree Horizontal
CRU7 Internal Splice Sleeve CRU7 Internal Splice Sleeve
- Pre Fabricated 90° - Available in Two Architectural - Pre Fabricated 135° - Available in Two Architectural
Horizontal Corner Finishes plus Mill Aluminum Horizontal Corner Finishes plus Mill Aluminum
- 6"x6" O.D. Outer Legs - Custom Angles and Finishes - 6"x6" O.D. Outer Legs - Custom Angles and Finishes
- Use with CRU7CSM Available. Contact FHC Technical - Use with CRU7CSM Available. Contact FHC Technical
Connector Splices Sales for More Information Connector Splices Sales for More Information

ITEM NO. CRU7HMB ITEM NO. CRU7H3MB
Minimum Order: 1 Each Minimum Order: 1 Each

FHC 90 Degree Horizontal FHC 135 Degree Horizontal
CRU7 Internal Splice Sleeve CRU7 Internal Splice Sleeve
- Internal Connector - Adhere With LT32629 Cement & - Internal Connector - Adhere With LT32629 Cement
Sleeve for 1-1/4" x 1-5/16" LT7649 Primer Sleeve for 1-1/4" x 1-5/16" & LT7649 Primer (See Page
Aluminum Cap Rails (See Page 79) Aluminum Cap Rails 79)
- Mill Aluminum - Mill Aluminum

Factory Welded
Factory Welded

FOR 1-1/4" ALUMINUM CAP RAIL FOR 1-1/4" ALUMINUM CAP RAIL
ITEM NO. FINISH ITEM NO. FINISH
CRU7S90M Mill Aluminum CRU7S135M Mill Aluminum
Minimum order: 1 each. Minimum order: 1 each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
