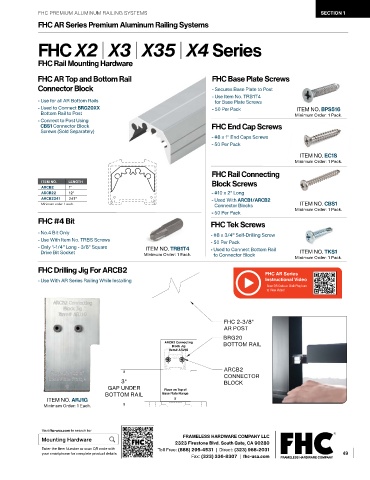

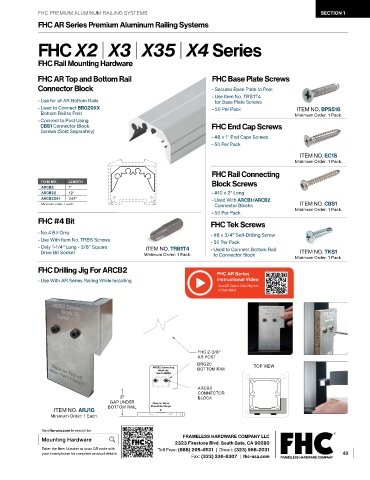

FHC PREMIUM ALUMINUM RAILING SYSTEMS SECTION 1
FHC AR Series Premium Aluminum Railing Systems

FHC X2 | X3 | X35 | X4 Series

FHC Rail Mounting Hardware

FHC AR Top and Bottom Rail FHC Base Plate Screws
Connector Block - Secures Base Plate to Post
- Use Item No. TRB1T4
- Use for all AR Bottom Rails for Base Plate Screws
- Used to Connect BRG20XX - 50 Per Pack ITEM NO. BPS516
Bottom Rail to Post Minimum Order: 1 Pack.
- Connect to Post Using
CBS1 Connector Block FHC End Cap Screws
Screws (Sold Separately)
- #8 x 1" End Caps Screws
- 50 Per Pack
ITEM NO. EC1S
Minimum Order: 1 Pack.
FHC Rail Connecting
ITEM NO. LENGTH Block Screws
ARCB2 1"
ARCB22 12" - #10 x 2" Long
ARCB2241 241" - Used With ARCB1/ARCB2
Minimum order: 1 each. Connector Blocks ITEM NO. CBS1
- 50 Per Pack Minimum Order: 1 Pack.
FHC #4 Bit FHC Tek Screws

- No.4 Bit Only - #8 x 3/4" Self-Drilling Screw
- Use With Item No. TRBS Screws - 50 Per Pack
- Only 1-1/4" Long - 3/8" Square ITEM NO. TRB1T4
Drive Bit Socket Minimum Order: 1 Each. - Used to Connect Bottom Rail ITEM NO. TKS1
to Connector Block
Minimum Order: 1 Pack.
FHC Drilling Jig For ARCB2 FHC AR Series
- Use With AR Series Railing While Installing Instructional Video
Scan QR Code or Click Play Icon
to View Video!

FHC 2-3/8"
AR POST
BRG20
ARCB2 Connecting BOTTOM RAIL
Block Jig
Item# ARJ1G

ARCB2
CONNECTOR
3" BLOCK
GAP UNDER Place on Top of
BOTTOM RAIL Base Plate Flange
ITEM NO. ARJ1G
Minimum Order: 1 Each.
