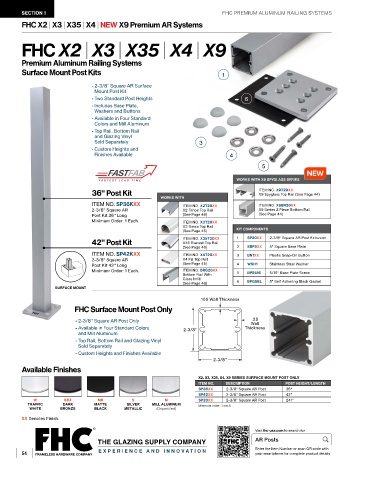

SECTION 1 FHC PREMIUM ALUMINUM RAILING SYSTEMS
FHC X2 | X3 | X35 | X4 | NEW X9 Premium AR Systems

FHC X2 | X3 | X35 | X4 | X9

Premium Aluminum Railing Systems
Surface Mount Post Kits 1

- 2-3/8" Square AR Surface
Mount Post Kit
- Two Standard Post Heights 6
- Includes Base Plate,
Washers and Buttons
- Available in Four Standard
Colors and Mill Aluminum
- Top Rail, Bottom Rail
and Glazing Vinyl
Sold Separately 3
- Custom Heights and
Finishes Available 4

5
WORKS WITH X9 SPYGLASS SERIES

36" Post Kit ITEM NO. X9T20XX
X9 Spyglass Top Rail (See Page 44)
WORKS WITH
ITEM NO. SP36KXX ITEM NO. X2T20XX ITEM NO. X9BR20XX
2-3/8" Square AR X2 Tahoe Top Rail X9 Series 2 Piece Bottom Rail
Post Kit 36" Long (See Page 46) (See Page 44)
Minimum Order: 1 Each. ITEM NO. X3T20XX
X3 Sierra Top Rail
(See Page 46) KIT COMPONENTS
42" Post Kit ITEM NO. X35T20XX 1 SP20XX 2-3/8" Square AR Post Extrusion
X35 Everest Top Rail
(See Page 46) 2 SBP5XX 5" Square Base Plate
ITEM NO. SP42KXX ITEM NO. X4T20XX 3 BN1XX Plastic Snap-On Button
2-3/8" Square AR X4 Fiji Top Rail
Post Kit 42" Long (See Page 46) 4 WSH1 Stainless Steel Washer
Minimum Order: 1 Each. ITEM NO. BRG20XX
Bottom Rail With 5 BPS516 5/16" Base Plate Screw
Glass Infill
(See Page 48) 6 BPG5BL 5" Self Adhering Black Gasket
SURFACE MOUNT
.100 Wall Thickness
FHC Surface Mount Post Only
.25
- 2-3/8" Square AR Post Only Wall
- Available in Four Standard Colors 2-3/8" Thickness
and Mill Aluminum
- Top Rail, Bottom Rail and Glazing Vinyl
Sold Separately
- Custom Heights and Finishes Available
2-3/8"
Available Finishes
X2, X3, X35, X4, X9 SERIES SURFACE MOUNT POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
SP36XX 2-3/8" Square AR Post 36"
SP42XX 2-3/8" Square AR Post 42"
W BRZ MB S M SP20XX 2-3/8" Square AR Post 241"
TRAFFIC DARK MATTE SILVER MILL ALUMINUM Minimum order: 1 each.
WHITE BRONZE BLACK METALLIC (Unpainted)
XX Denotes Finish.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY AR Posts

54 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
