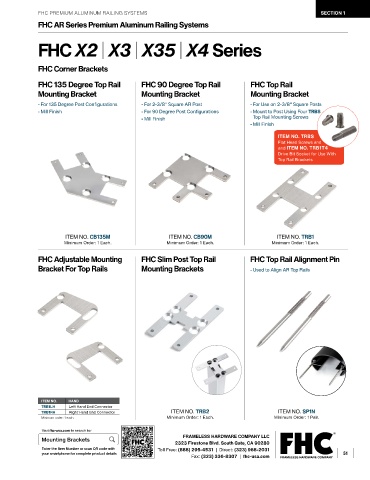

Page 53 - FHC-FARW26-Premium-Aluminum-Railing-Systems

FHC PREMIUM ALUMINUM RAILING SYSTEMS SECTION 1
FHC AR Series Premium Aluminum Railing Systems
FHC A R Series Premium Aluminum Railing Sy stems

FHC X2 | X3 | X35 | X4 Series

FHC Corner Brackets

FHC 135 Degree Top Rail FHC 90 Degree Top Rail FHC Top Rail
Mounting Bracket Mounting Bracket Mounting Bracket

- For 135 Degree Post Configurations - For 2-3/8" Square AR Post - For Use on 2-3/8" Square Posts
- Mill Finish - For 90 Degree Post Configurations - Mount to Post Using Four TRBS
- Mill Finish Top Rail Mounting Screws
- Mill Finish

ITEM NO. TRBS
Flat Head Screws and
and ITEM NO. TRB1T4
Drive Bit Socket for Use With
Top Rail Brackets

ITEM NO. CB135M ITEM NO. CB90M ITEM NO. TRB1
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Adjustable Mounting FHC Slim Post Top Rail FHC Top Rail Alignment Pin
Bracket For Top Rails Mounting Brackets - Used to Align AR Top Rails

ITEM NO. HAND
TRB1LH Left Hand End Connector
TRB1RH Right Hand End Connector ITEM NO. TRB2 ITEM NO. SP1N
Minimum order: 1 each. Minimum Order: 1 Each. Minimum Order: 1 Pair.
Visit fhc-usa.com to search for
Mounting Brackets FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
tphone f
our smar
y your smartphone for complete product details 51
t de
tails
te produc
or comple
Fax: (323) 336-8307 | fhc-usa.com
