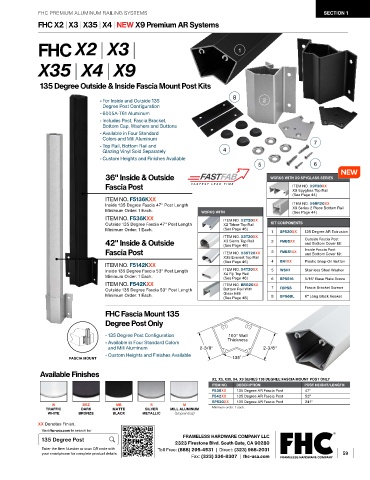

FHC PREMIUM ALUMINUM RAILING SYSTEMS SECTION 1SECTION 1
FHC X2 | X3 | X35 | X4 | NEW X9 Premium AR Systems

FHC X2 | X3 | 1

X35 | X4 | X9

135 Degree Outside & Inside Fascia Mount Post Kits
8
- For Inside and Outside 135 2 3
Degree Post Configuration
- 6005A-T61 Aluminum
- Includes Post, Fascia Bracket,
Bottom Cap, Washers and Buttons
- Available in Four Standard 7
Colors and Mill Aluminum
- Top Rail, Bottom Rail and 7
Glazing Vinyl Sold Separately 4
- Custom Heights and Finishes Available
5 6

36" Inside & Outside WORKS WITH X9 SPYGLASS SERIES
Fascia Post ITEM NO. X9T20XX
X9 Spyglass Top Rail
(See Page 44)
ITEM NO. F5136KXX
Inside 135 Degree Fascia 47" Post Length ITEM NO. X9BR20XX
Minimum Order: 1 Each. WORKS WITH X9 Series 2 Piece Bottom Rail
(See Page 44)
ITEM NO. F536KXX ITEM NO. X2T20XX
Outside 135 Degree Fascia 47" Post Length X2 Tahoe Top Rail KIT COMPONENTS
Minimum Order: 1 Each. (See Page 46) 1 SP520XX 135 Degree AR Extrusion
ITEM NO. X3T20XX
42" Inside & Outside X3 Sierra Top Rail 2 FMB5XX Outside Fascia Post
and Bottom Cover Kit
(See Page 46)
Fascia Post ITEM NO. X35T20XX 3 FMB51XX Inside Fascia Post
and Bottom Cover Kit
X35 Everest Top Rail
ITEM NO. F5142KXX (See Page 46) 4 BN1XX Plastic Snap-On Button
Inside 135 Degree Fascia 53" Post Length ITEM NO. X4T20XX 5 WSH1 Stainless Steel Washer
Minimum Order: 1 Each. X4 Fiji Top Rail 6 BPS516 5/16" Base Plate Screw
(See Page 46)
ITEM NO. F542KXX ITEM NO. BRG20XX
Outside 135 Degree Fascia 53" Post Length Bottom Rail With 7 FBPS8 Fascia Bracket Screws
Minimum Order: 1 Each. Glass Infill 8 BPG6BL 6" Long Black Gasket
(See Page 48)
FHC Fascia Mount 135
Degree Post Only
- 135 Degree Post Configuration .100" Wall
- Available in Four Standard Colors Thickness
and Mill Aluminum 2-3/8" 2-3/8"
- Custom Heights and Finishes Available
FASCIA MOUNT 135 º

Available Finishes
X2, X3, X35, X4, X9 SERIES 135 DEGREE FASCIA MOUNT POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
F536XX 135 Degree AR Fascia Post 47"
F542XX 135 Degree AR Fascia Post 53"
SP520XX 135 Degree AR Fascia Post 241"
W BRZ MB S M
TRAFFIC DARK MATTE SILVER MILL ALUMINUM Minimum order: 1 each.
WHITE BRONZE BLACK METALLIC (Unpainted)
inish.
XX Denotes Finish.
tes F
Deno
XX
Visit fhc-usa.com to search for
135 Degree Post FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 59
