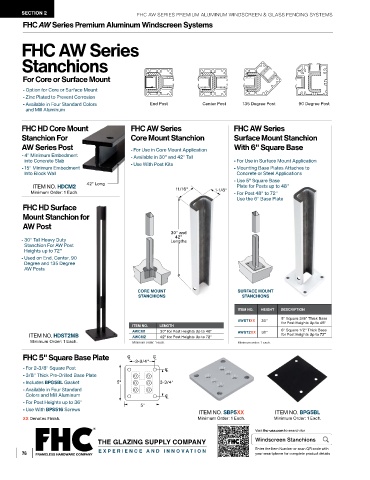

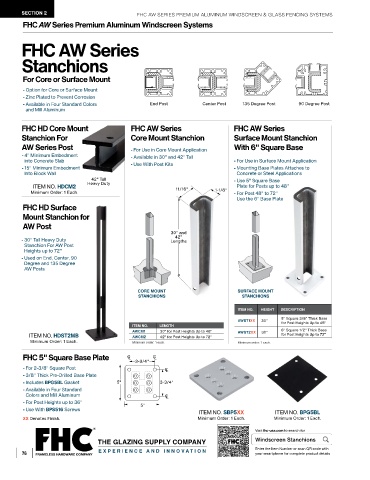

SECTION 2 FHC AW SERIES PREMIUM ALUMINUM WINDSCREEN & GLASS FENCING SYSTEMS
FHC AW Series Premium Aluminum Windscreen Systems

FHC AW Series

Stanchions

For Core or Surface Mount

- Option for Core or Surface Mount
- Zinc Plated to Prevent Corrosion
- Available in Four Standard Colors End Post Center Post 135 Degree Post 90 Degree Post
and Mill Aluminum

FHC HD Core Mount FHC AW Series FHC AW Series
Stanchion For Core Mount Stanchion Surface Mount Stanchion
AW Series Post - For Use in Core Mount Application With 6" Square Base
- 4" Minimum Embedment - Available in 30" and 42" Tall
into Concrete Slab SBP2 EDIT - For Use in Surface Mount Application
- 15" Minimum Embedment - Use With Post Kits - Mounting Base Plates Attaches to
Into Block Wall Concrete or Steel Applications
- Use 5" Square Base
ITEM NO. HDCM2 42" Long Plate for Posts up to 48"
Minimum Order: 1 Each. 11/16" 1-1/8" - For Post 48" to 72"
Use the 6" Base Plate
FHC HD Surface
Mount Stanchion for 0BP2
AW Post
30" and
42"
- 30" Tall Heavy Duty Lengths
Stanchion For AW Post
Heights up to 72"
- Used on End, Center, 90
Degree and 135 Degree
AW Posts SBP2

CORE MOUNT SURFACE MOUNT
STANCHIONS STANCHIONS

ITEM NO. HEIGHT DESCRIPTION

AWST1XX 30" 5" Square 3/8" Thick Base
0BP5 ITEM NO. LENGTH for Post Heights Up to 48"
AWCM1 30" for Post Heights Up to 48" AWST2XX 30" 6" Square 1/2" Thick Base
ITEM NO. HDST2MB AWCM2 42" for Post Heights Up to 72" for Post Heights Up to 72"
Minimum Order: 1 Each. Minimum order: 1 each. Minimum order: 1 each.

FHC 5" Square Base Plate C L C L
3-3/4"
- For 2-3/8" Square Post C L
- 3/8" Thick Pre-Drilled Base Plate
- Includes BPG5BL Gasket 5" SBP5 3-3/4"
- Available in Four Standard
Colors and Mill Aluminum C L
- For Post Heights up to 36" 5"
- Use With BPS516 Screws
ITEM NO. SBP5XX ITEM NO. BPG5BL
XX Denotes Finish. Minimum Order: 1 Each. Minimum Order: 1 Each.
