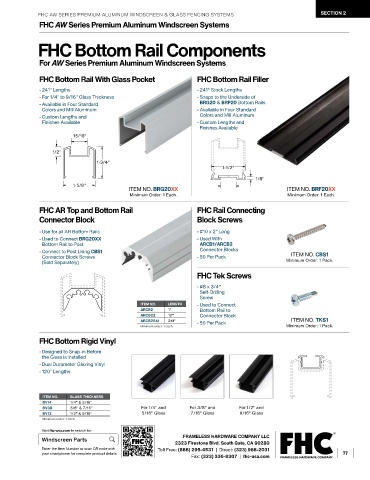

Page 79 - FHC-FARW26-Premium-Aluminum-Railing-Systems

FHC AW SERIES PREMIUM ALUMINUM WINDSCREEN & GLASS FENCING SYSTEMS SECTION 2
FHC AW Series Premium Aluminum Windscreen Systems

FHC Bottom Rail Components

For AW Series Premium Aluminum Windscreen Systems

FHC Bottom Rail With Glass Pocket FHC Bottom Rail Filler

- 241" Lengths - 241" Stock Lengths
- For 1/4" to 9/16" Glass Thickness - Snaps to the Underside of
- Available in Four Standard BRG20 & BRP20 Bottom Rails
Colors and Mill Aluminum - Available in Four Standard
- Custom Lengths and Colors and Mill Aluminum
Finishes Available - Custom Lengths and
Finishes Available
15/16"

1/2"
1-3/4"
1-1/2"
1/8"
1-5/8"
ITEM NO. BRG20XX ITEM NO. BRF20XX
Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC AR Top and Bottom Rail FHC Rail Connecting
Connector Block Block Screws

- Use for all AR Bottom Rails - #10 x 2" Long
- Used to Connect BRG20XX - Used With
Bottom Rail to Post ARCB1/ARCB2
- Connect to Post Using CBS1 Connector Blocks
Connector Block Screws - 50 Per Pack ITEM NO. CBS1
(Sold Separately) Minimum Order: 1 Pack.

FHC Tek Screws
- #8 x 3/4"
Self-Drilling
Screw
ITEM NO. LENGTH - Used to Connect
ARCB2 1" Bottom Rail to
ARCB22 12" Connector Block
ARCB2241 241" - 50 Per Pack ITEM NO. TKS1
Minimum order: 1 each. Minimum Order: 1 Pack.
FHC Bottom Rigid Vinyl

- Designed to Snap-in Before
the Glass is Installed
- Dual Durometer Glazing Vinyl
- 120" Lengths

ITEM NO. GLASS THICKNESS
BV14 1/4" & 5/16"
BV38 3/8" & 7/16" For 1/4" and For 3/8" and For 1/2" and
BV12 1/2" & 9/16" 5/16" Glass 7/16" Glass 9/16" Glass
Minimum order: 1 each.
Visit fhc-usa.com to search for
Windscreen Parts FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 77
