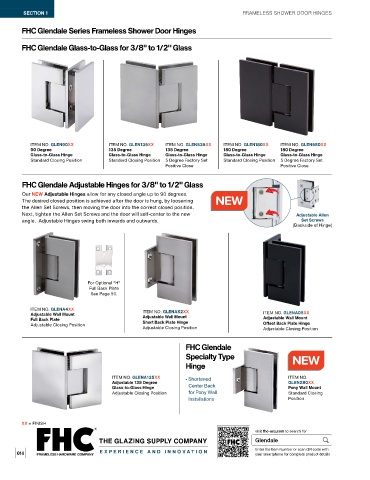

Page 22 - FSH24R Frameless Shower Door Hardware and Supplies

SECTION 1 FRAMELESS SHOWER DOOR HINGES
SECTION 1
FHC Glendale Series Frameless Shower Door Hinges

FHC Glendale Glass-to-Glass for 3/8" to 1/2" Glass

ITEM NO. GLEN90XX ITEM NO. GLEN135XX ITEM NO. GLEN535XX ITEM NO. GLEN180XX ITEM NO. GLEN580XX
90 Degree 135 Degree 135 Degree 180 Degree 180 Degree
Glass-to-Glass Hinge Glass-to-Glass Hinge Glass-to-Glass Hinge Glass-to-Glass Hinge Glass-to-Glass Hinge
Standard Closing Position Standard Closing Position 5 Degree Factory Set Standard Closing Position 5 Degree Factory Set
Positive Close Positive Close

FHC Glendale Adjustable Hinges for 3/8" to 1/2" Glass
Our NEW Adjustable Hinges allow for any closed angle up to 90 degrees.
The desired closed position is achieved after the door is hung, by loosening
the Allen Set Screws, then moving the door into the correct closed position.
Next, tighten the Allen Set Screws and the door will self-center to the new Adjustable Allen
angle. Adjustable Hinges swing both inwards and outwards. Set Screws
(Backside of Hinge)

For Optional "H"
Full Back Plate
See Page 50.

ITEM NO. GLENA4XX ITEM NO. GLENAS2XX
Adjustable Wall Mount Adjustable Wall Mount ITEM NO. GLENA05XX
Full Back Plate Short Back Plate Hinge Adjustable Wall Mount
Adjustable Closing Position Offset Back Plate Hinge
Adjustable Closing Position Adjustable Closing Position

FHC Glendale
Specialty Type
Hinge

ITEM NO. GLENA135XX - Shortened ITEM NO.
Adjustable 135 Degree Center Back GLEN280XX
Glass-to-Glass Hinge Pony Wall Mount
Adjustable Closing Position for Pony Wall Standard Closing
Installations Position

XX = FINISH
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Glendale

014 EXPERIENCE A ND INNO V A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
