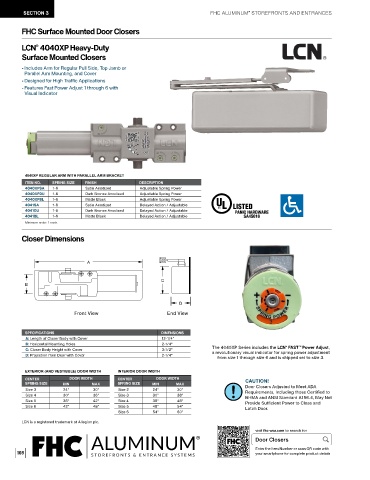

Page 110 - FAL24R Storefronts and Entrances
P. 110

SECTION 3                                                     FHC ALUMINUM  STOREFRONTS AND ENTRANCES
                                                                                   ®
        FHC Surface Mounted Door Closers


        LCN  4040XP Heavy-Duty
             ®
        Surface Mounted Closers
           -  Includes Arm for Regular Pull Side, Top Jamb or
         Parallel Arm Mounting, and Cover
           - Designed for High Traffic Applications
           -  Features Fast Power Adjust 1 through 6 with
         Visual Indicator
















         4040XP REGULAR ARM WITH PARALLEL ARM BRACKET
         ITEM NO.  SPRING SIZE  FINISH         DESCRIPTION
         4040XPSA  1-6       Satin Anodized    Adjustable Spring Power
         4040XPDU  1-6       Dark Bronze Anodized  Adjustable Spring Power
         4040XPBL  1-6       Matte Black       Adjustable Spring Power
         4041SA   1-6        Satin Anodized    Delayed Action / Adjustable
         4041DU   1-6        Dark Bronze Anodized  Delayed Action / Adjustable
         4041BL   1-6        Matte Black       Delayed Action / Adjustable
         Minimum order: 1 each.
        Closer Dimensions




                              A

                                                      C
         B


                                                            D
                          Front View                    End View


         SPECIFICATIONS                               DIMENSIONS
         A: Length of Closer Body with Cover           12-1/4"
         B: Horizontal Mounting Holes                  2-1/4"                                   ®   ™
         C: Closer Body Height with Cover              3-1/2"          The 4040XP Series includes the LCN  FAST  Power Adjust,
                                                                       a revolutionary visual indicator for spring power adjustment
         D: Projection from Door with Cover            2-1/4"
                                                                         from size 1 through size 6 and is shipped set to size 3.
         EXTERIOR (AND VESTIBULE) DOOR WIDTH  INTERIOR DOOR WIDTH
         CENTER         DOOR WIDTH      CENTER       DOOR WIDTH                   CAUTION!
         SPRING SIZE  MIN      MAX      SPRING SIZE  MIN   MAX                    Door Closers Adjusted to Meet ADA
         Size 3       24"       30"     Size 2      24"     30"                   Requirements, Including those Certified to
         Size 4       30"       36"     Size 3      30"     38"                   BHMA and ANSI Standard A156.4, May Not
         Size 5       36"       42"     Size 4      38"     48"                   Provide Sufficient Power to Close and
         Size 6       42"       48"     Size 5      48"     54"                   Latch Door.
                                        Size 6      54"     60"
          LCN is a registered trademark of Allegion plc.
                                                                                      visit fhc-usa.com to search for
                                                                                      Door Closers
                                                                                      Enter the Item Number or scan QR code with
