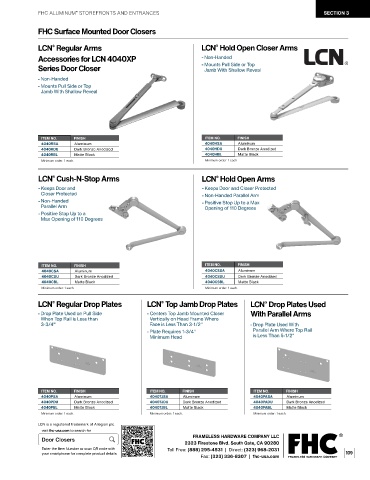

Page 111 - FAL24R Storefronts and Entrances
P. 111

FHC ALUMINUM  STOREFRONTS AND ENTRANCES                                                       SECTION 3
                          ®
              FHC Surface Mounted Door Closers


              LCN  Regular Arms                                     LCN  Hold Open Closer Arms
                                                                        ®
                  ®
              Accessories for LCN 4040XP                              - Non-Handed
              Series Door Closer                                      -  Mounts Pull Side or Top
                                                                     Jamb With Shallow Reveal
                - Non-Handed
                -  Mounts Pull Side or Top
               Jamb With Shallow Reveal








               ITEM NO.  FINISH                                      ITEM NO.   FINISH
               4040RSA    Aluminum                                   4040HSA    Aluminum
               4040RDU    Dark Bronze Anodized                       4040HDU    Dark Bronze Anodized
               4040RBL    Matte Black                                4040HBL    Matte Black
               Minimum order: 1 each.                                Minimum order: 1 each.

              LCN  Cush-N-Stop Arms                                 LCN  Hold Open Arms
                  ®
                                                                        ®
                -  Keeps Door and                                     - Keeps Door and Closer Protected
               Closer Protected                                       - Non-Handed Parallel Arm
                -  Non-Handed                                         -  Positive Stop Up to a Max
               Parallel Arm                                          Opening of 110 Degrees
                -  Positive Stop Up to a
               Max Opening of 110 Degrees








               ITEM NO.   FINISH                                     ITEM NO.   FINISH
               4040CSA    Aluminum                                   4040CSSA   Aluminum
               4040CDU    Dark Bronze Anodized                       4040CSDU   Dark Bronze Anodized
               4040CBL    Matte Black                                4040CSBL   Matte Black
               Minimum order: 1 each.                                Minimum order: 1 each.

              LCN  Regular Drop Plates            LCN  Top Jamb Drop Plates         LCN  Drop Plates Used
                  ®
                                                      ®
                                                                                         ®
                -  Drop Plate Used on Pull Side     -  Centers Top Jamb Mounted Closer   With Parallel Arms
               When Top Rail is Less than          Vertically on Head Frame Where
               3-3/4"                              Face is Less Than 3-1/2"           -  Drop Plate Used With
                                                    -  Plate Requires 1-3/4"         Parallel Arm Where Top Rail
                                                   Minimum Head                      is Less Than 5-1/2"






 CAUTION!
 Door Closers Adjusted to Meet ADA
 Requirements, Including those Certified to   ITEM NO.  FINISH  ITEM NO.  FINISH     ITEM NO.   FINISH
 BHMA and ANSI Standard A156.4, May Not   4040PSA  Aluminum  4040TJSA  Aluminum      4040PASA   Aluminum
 Provide Sufficient Power to Close and   4040PDU  Dark Bronze Anodized  4040TJDU  Dark Bronze Anodized  4040PADU  Dark Bronze Anodized
 Latch Door.   4040PBL    Matte Black              4040TJBL   Matte Black            4040PABL   Matte Black
               Minimum order: 1 each.              Minimum order: 1 each.            Minimum order: 1 each.
                LCN is a registered trademark of Allegion plc.
               visit fhc-usa.com to search for
               Door Closers                                      FRAMELESS HARDWARE COMPANY LLC
                                                              2323 Firestone Blvd. South Gate, CA 90280
               Enter the Item Number or scan QR code with    Toll Free: (888) 295-4531  |  Direct: (323) 968-2031
               your smartphone for complete product details                                                        109
                                                                   Fax: (323) 336-8307  |  fhc-usa.com
