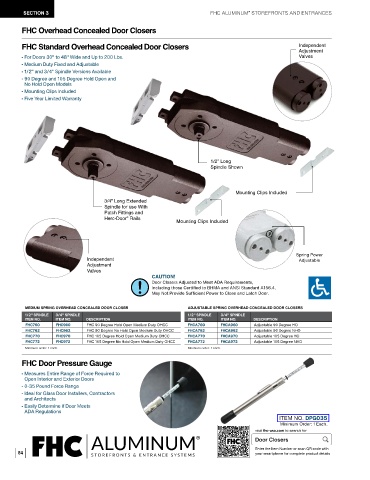

SECTION 3 FHC ALUMINUM STOREFRONTS AND ENTRANCES
®
FHC Overhead Concealed Door Closers

FHC Standard Overhead Concealed Door Closers Independent
Adjustment
- For Doors 30" to 48" Wide and Up to 200 Lbs. Valves
- Medium Duty Fixed and Adjustable
- 1/2" and 3/4" Spindle Versions Available
- 90 Degree and 105 Degree Hold Open and
No Hold Open Models
- Mounting Clips Included
- Five Year Limited Warranty

1/2" Long
Spindle Shown

Mounting Clips Included
3/4" Long Extended
Spindle for use With
Patch Fittings and
®
Herc-Door Rails
Mounting Clips Included

Spring Power
Independent Adjustable
Adjustment
Valves
CAUTION!
Door Closers Adjusted to Meet ADA Requirements,
Including those Certified to BHMA and ANSI Standard A156.4,
May Not Provide Sufficient Power to Close and Latch Door.

MEDIUM SPRING OVERHEAD CONCEALED DOOR CLOSER ADJUSTABLE SPRING OVERHEAD CONCEALED DOOR CLOSERS
1/2" SPINDLE 3/4" SPINDLE 1/2" SPINDLE 3/4" SPINDLE
ITEM NO. ITEM NO. DESCRIPTION ITEM NO. ITEM NO. DESCRIPTION
FHC760 FHC960 FHC 90 Degree Hold Open Medium Duty OHCC FHCA760 FHCA960 Adjustable 90 Degree HO
FHC762 FHC962 FHC 90 Degree No Hold Open Medium Duty OHCC FHCA762 FHCA962 Adjustable 90 Degree NHO
FHC770 FHC970 FHC 105 Degree Hold Open Medium Duty OHCC FHCA770 FHCA970 Adjustable 105 Degree HO
FHC772 FHC972 FHC 105 Degree No Hold Open Medium Duty OHCC FHCA772 FHCA972 Adjustable 105 Degree NHO
Minimum order: 1 each. Minimum order: 1 each.

FHC Door Pressure Gauge
- Measures Entire Range of Force Required to
Open Interior and Exterior Doors
- 0-35 Pound Force Range
- Ideal for Glass Door Installers, Contractors
and Architects
- Easily Determine if Door Meets
ADA Regulations
ITEM NO. DPG035
Minimum Order: 1 Each.
visit fhc-usa.com to search for
Door Closers
Enter the Item Number or scan QR code with
84 your smartphone for complete product details
