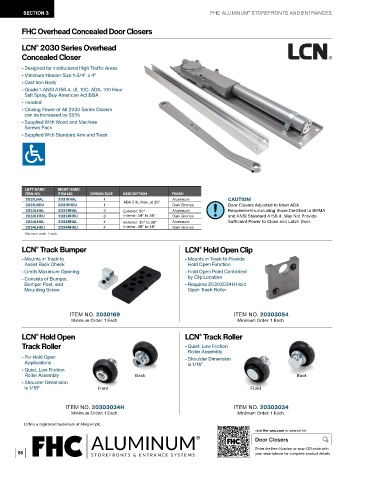

Page 88 - FAL24R Storefronts and Entrances

SECTION 3 FHC ALUMINUM STOREFRONTS AND ENTRANCES
®
FHC Overhead Concealed Door Closers

LCN 2030 Series Overhead
®
Concealed Closer
- Designed for Institutional High Traffic Areas
- Minimum Header Size 1-3/4" x 4"
- Cast Iron Body
- Grade 1-ANSI A156.4, UL 10C, ADA, 100 Hour
Salt Spray, Buy American Act BBA
- Handed
- Closing Power of All 2030 Series Closers
can be Increased by 35%
- Supplied With Wood and Machine
Screws Pack
- Supplied With Standard Arm and Track

LEFT HAND RIGHT HAND
ITEM NO. ITEM NO. SPRING SIZE DESCRIPTION FINISH
2031LHAL 2031RHAL 1 Aluminum CAUTION!
2031LHDU 2031RHDU 1 ADA 5 lb. Max. at 36" Dark Bronze Door Closers Adjusted to Meet ADA
2033LHAL 2033RHAL 3 Exterior: 30" Aluminum Requirements,Including those Certified to BHMA
2033LHDU 2033RHDU 3 Interior: 34" to 38" Dark Bronze and ANSI Standard A156.4, May Not Provide
2034LHAL 2034RHAL 4 Exterior: 30" to 36" Aluminum Sufficient Power to Close and Latch Door.
2034LHDU 2034RHDU 4 Interior: 38" to 48" Dark Bronze
Minimum order: 1 each.
LCN Track Bumper LCN Hold Open Clip
®
®
- Mounts in Track to - Mounts in Track to Provide
Assist Back Check Hold Open Function
- Limits Maximum Opening - Hold Open Point Controlled
- Consists of Bumper, by Clip Location
Bumper Post, and - Requires 20303034H Hold
Mounting Screw Open Track Roller

ITEM NO. 2030169 ITEM NO. 20303054
Minimum Order: 1 Each. Minimum Order: 1 Each.

LCN Hold Open LCN Track Roller
®
®
Track Roller - Quiet, Low Friction
Roller Assembly
- For Hold Open - Shoulder Dimension
Applications is 1/16"
- Quiet, Low Friction
Roller Assembly Back Back
- Shoulder Dimension
is 1/16" Front Front

ITEM NO. 20303034H ITEM NO. 20303034
Minimum Order: 1 Each. Minimum Order: 1 Each.

LCN is a registered trademark of Allegion plc.
visit fhc-usa.com to search for
Door Closers
Enter the Item Number or scan QR code with
86 your smartphone for complete product details
