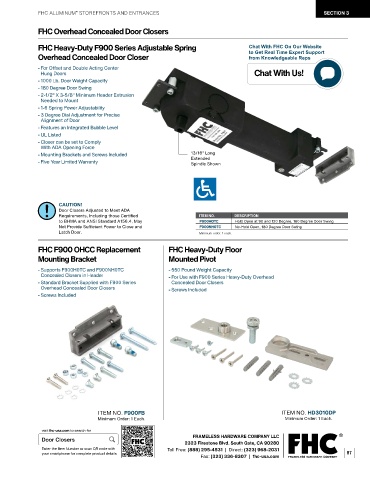

Page 89 - FAL24R Storefronts and Entrances
P. 89

FHC ALUMINUM  STOREFRONTS AND ENTRANCES                                                       SECTION 3
                          ®
              FHC Overhead Concealed Door Closers


              FHC Heavy-Duty F900 Series Adjustable Spring                         Chat With FHC On Our Website
                                                                                   to Get Real Time Expert Support
              Overhead Concealed Door Closer                                       from Knowledgeable Reps
                -  For Offset and Double Acting Center
               Hung Doors                                                            Chat With Us!
                - 1000 Lb. Door Weight Capacity
                - 180 Degree Door Swing
                -  2-1/2" X 3-5/8" Minimum Header Extrusion
               Needed to Mount
                - 1-6 Spring Power Adjustability
                -  3 Degree Dial Adjustment for Precise
               Alignment of Door
                - Features an Integrated Bubble Level
                - UL Listed
                -  Closer can be set to Comply
               With ADA Opening Force
                - Mounting Brackets and Screws Included         13/16" Long
                - Five Year Limited Warranty                    Extended
                                                                Spindle Shown






                    CAUTION!
                    Door Closers Adjusted to Meet ADA
                    Requirements, Including those Certified        ITEM NO.    DESCRIPTION
                    to BHMA and ANSI Standard A156.4, May          F900H0TC    Hold Open at 90 and 120 Degree, 180 Degree Door Swing
                    Not Provide Sufficient Power to Close and      F900NH0TC   No-Hold Open, 180 Degree Door Swing
                    Latch Door.                                    Minimum order: 1 each.

              FHC F900 OHCC Replacement                  FHC Heavy-Duty Floor
              Mounting Bracket                           Mounted Pivot

                -  Supports F900H0TC and F900NH0TC         - 550 Pound Weight Capacity
               Concealed Closers in Header                 -  For Use with F900 Series Heavy-Duty Overhead
                -  Standard Bracket Supplied with F900 Series   Concealed Door Closers
               Overhead Concealed Door Closers             - Screws Included
                - Screws Included






















                                 ITEM NO. F900FB                                              ITEM NO. HD3010DP
                                 Minimum Order: 1 Each.                                        Minimum Order: 1 Each.
               visit fhc-usa.com to search for
               Door Closers                                      FRAMELESS HARDWARE COMPANY LLC
                                                              2323 Firestone Blvd. South Gate, CA 90280
               Enter the Item Number or scan QR code with    Toll Free: (888) 295-4531  |  Direct: (323) 968-2031
               your smartphone for complete product details                                                         87
                                                                   Fax: (323) 336-8307  |  fhc-usa.com
   84   85   86   87   88   89   90   91   92   93   94
