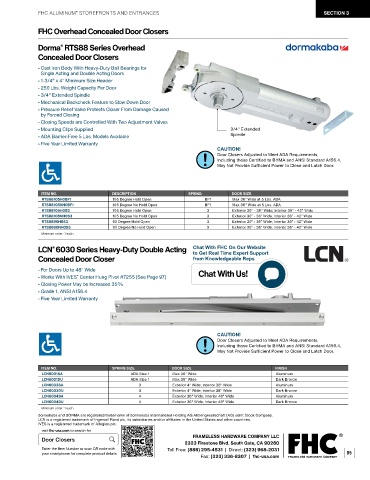

Page 87 - FAL24R Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 3
®
FHC Overhead Concealed Door Closers

Dorma RTS88 Series Overhead
®
Concealed Door Closers
- Cast Iron Body With Heavy-Duty Ball Bearings for
Single Acting and Double Acting Doors
- 1-3/4" x 4" Minimum Size Header
- 250 Lbs. Weight Capacity Per Door
- 3/4" Extended Spindle
- Mechanical Backcheck Feature to Slow Down Door
- Pressure Relief Valve Protects Closer From Damage Caused
by Forced Closing
- Closing Speeds are Controlled With Two Adjustment Valves
- Mounting Clips Supplied 3/4" Extended
- ADA Barrier-Free 5 Lbs. Models Available Spindle
- Five Year Limited Warranty
CAUTION!
Door Closers Adjusted to Meet ADA Requirements,
Including those Certified to BHMA and ANSI Standard A156.4,
May Not Provide Sufficient Power to Close and Latch Door.

ITEM NO. DESCRIPTION SPRING DOOR SIZE
RTS88105H0BF1 105 Degree Hold Open BF1 Max 36” Wide at 5 Lbs. ADA
RTS88105NH0BF1 105 Degree No Hold Open BF1 Max 36" Wide at 5 Lbs. ADA
RTS88105H0S3 105 Degree Hold Open 3 Exterior 30" - 36" Wide; Interior 36" - 42" Wide
RTS88105NH0S3 105 Degree No Hold Open 3 Exterior 30” - 36” Wide; Interior 36” - 42” Wide
RTS8890H0S3 90 Degree Hold Open 3 Exterior 30” - 36” Wide; Interior 36” - 42” Wide
RTS8890NH0S3 90 Degree No Hold Open 3 Exterior 30” - 36” Wide; Interior 36” - 42” Wide
Minimum order: 1 each.
LCN 6030 Series Heavy-Duty Double Acting Chat With FHC On Our Website
®
to Get Real Time Expert Support
Concealed Door Closer from Knowledgeable Reps
- For Doors Up to 48" Wide
- Works With IVES Center Hung Pivot #7255 (See Page 97) Chat With Us!
®
- Closing Power May be Increased 35%
- Grade 1, ANSI A156.4
- Five Year Limited Warranty

CAUTION!
Door Closers Adjusted to Meet ADA Requirements,
Including those Certified to BHMA and ANSI Standard A156.4,
May Not Provide Sufficient Power to Close and Latch Door.

ITEM NO. SPRING SIZE DOOR SIZE FINISH
LCN6031SA ADA Size 1 Max 36" Wide Aluminum
LCN6031DU ADA Size 1 Max 36" Wide Dark Bronze
LCN6033SA 3 Exterior 4" Wide; Interior 38" Wide Aluminum
LCN6033DU 3 Exterior 4" Wide; Interior 38" Wide Dark Bronze
LCN6034SA 4 Exterior 36" Wide; Interior 48" Wide Aluminum
LCN6034DU 4 Exterior 36" Wide; Interior 48" Wide Dark Bronze
Minimum order: 1 each.
