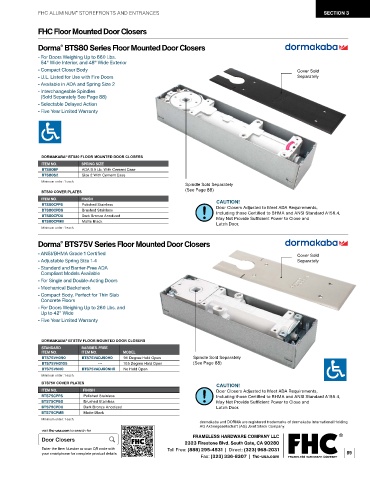

Page 91 - FAL24R Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 3
®
FHC Floor Mounted Door Closers

Dorma BTS80 Series Floor Mounted Door Closers
®
- For Doors Weighing Up to 660 Lbs.
54" Wide Interior, and 48" Wide Exterior
- Compact Closer Body Cover Sold
- U.L. Listed for Use with Fire Doors Separately
- Available in ADA and Spring Size 2
- Interchangeable Spindles
(Sold Separately See Page 88)
- Selectable Delayed Action
- Five Year Limited Warranty

DORMAKABA ® BTS80 FLOOR MOUNTED DOOR CLOSERS
ITEM NO. SPRING SIZE
BTS80BF ADA 8.5 Lb. With Cement Case
BTS80S2 Size 2 With Cement Case
Minimum order: 1 each.
Spindle Sold Separately
BTS80 COVER PLATES (See Page 88)
ITEM NO. FINISH CAUTION!
BTS80CPPS Polished Stainless Door Closers Adjusted to Meet ADA Requirements,
BTS80CPBS Brushed Stainless Including those Certified to BHMA and ANSI Standard A156.4,
BTS80CPDU Dark Bronze Anodized May Not Provide Sufficient Power to Close and
BTS80CPMB Matte Black Latch Door.
Minimum order: 1 each.

Dorma BTS75V Series Floor Mounted Door Closers
®
- ANSI/BHMA Grade 1 Certified Cover Sold
- Adjustable Spring Size 1-4 Separately
- Standard and Barrier-Free ADA
Compliant Models Available
- For Single and Double-Acting Doors
- Mechanical Backcheck
- Compact Body, Perfect for Thin Slab
Concrete Floors
- For Doors Weighing Up to 260 Lbs. and
Up to 42" Wide
- Five Year Limited Warranty

DORMAKABA ® BTS75V FLOOR MOUNTED DOOR CLOSERS
STANDARD BARRIER-FREE
ITEM NO. ITEM NO. MODEL
BTS75VH090 BTS75VADJ90H0 90 Degree Hold Open Spindle Sold Separately
BTS75VH0105 --- 105 Degree Hold Open (See Page 88)
BTS75VNH0 BTS75VADJ90NH0 No Hold Open
Minimum order: 1 each.
BTS75V COVER PLATES
CAUTION!
ITEM NO. FINISH Door Closers Adjusted to Meet ADA Requirements,
BTS75CPPS Polished Stainless Including those Certified to BHMA and ANSI Standard A156.4,
BTS75CPBS Brushed Stainless May Not Provide Sufficient Power to Close and
BTS75CPDU Dark Bronze Anodized Latch Door.
BTS75CPMB Matte Black
Minimum order: 1 each.
dormakaba and DORMA are registered trademarks of dormakaba International Holding
AG Aktiengesellschaft (AG) Joint Stock Company.
visit fhc-usa.com to search for
Door Closers FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 89
Fax: (323) 336-8307 | fhc-usa.com
