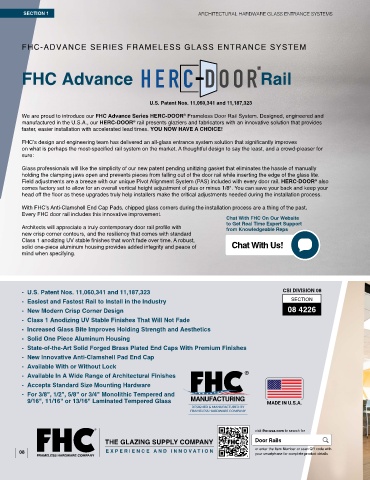

Page 16 - FAH23R Architectural Hardware Catalog

SECTION 1 ARCHITECTURAL HARDWARE GLASS ENTRANCE SYSTEMS

FHC-ADVANCE SERIES FRAMELESS
GLASS ENTRANCE SYSTEM

FHC Advance Rail

2-1/2" Low Profile Tapered Door Rail

- U.S. Patent Nos. 11,060,341 and 11,187,323
- Easiest and Fastest Rail to Install in the Industry
NEW - For 3/8", 1/2", 5/8" or 3/4" Monolithic Tempered and

INNOVATIVE 9/16", 11/16" or 13/16" Laminated Tempered Glass
DESIGN - Class 1 Anodizing UV Stable Finishes HERC-DOOR Patch
That Will Not Fade
®
Fittings Also Available!
- Increased Glass Bite
Improves Holding Strength
and Aesthetics
- Solid One Piece
Aluminum Housing
- State-of-the-Art Solid Forged
Brass Plated End Caps With 2-1/2" Low Profile
®
Premium Finishes and New Tapered HERC-DOOR
Patch Fitting
Innovative Anti-Clamshell (See Pages 54-55)
Pad End Cap
- Available With or Without Lock
- Available In a Wide Range of Architectural Finishes
- Accepts Standard Size Mounting Hardware
DESIGNED & MANUFACTURED BY
FRAMELESS HARDWARE COMPANY - Meets A.D.A. Requirements (Check Local Building Codes)

2-1/2" Low Profile Tapered Door Rail for 3/8", 1/2" or 9/16" Tempered or Laminated Glass

Finishes In Stock * Custom Finishes

BS BRUSHED PS POLISHED SA SATIN MB MATTE DU DARK PB POLISHED SB SATIN 0RB OIL PT CUSTOM PAINT
STAINLESS STAINLESS ANODIZED BLACK BRONZE BRASS BRASS* RUBBED COLOR*
ANODIZED BRONZE*

2-1/2" LOW PROFILE TAPERED DOOR RAILS 35-3/4" LENGTH - STOCK PRODUCTS READY TO SHIP
FOR 3/8" GLASS FOR 3/8" GLASS FOR 1/2" & 9/16" GLASS FOR 1/2" & 9/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
R25T38XX R25T38XXL R25T12XX R25T12XXL

CUSTOM LENGTH AND/OR FINISH ( ) 2-1/2" LOW PROFILE TAPERED DOOR RAILS - MANUFACTURED TO CUSTOMER SPECIFICATIONS
*
FOR 3/8" GLASS FOR 3/8" GLASS FOR 1/2" & 9/16" GLASS FOR 1/2" & 9/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
R25T38XXC R25T38XXLC R25T12XXC R25T12XXLC

XX Denotes Finish.
