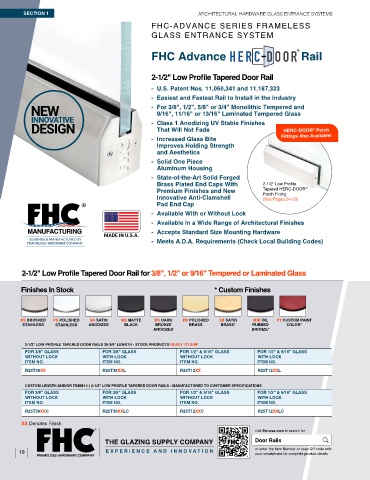

Page 18 - FAH23R Architectural Hardware Catalog

SECTION 1 ARCHITECTURAL HARDWARE GLASS ENTRANCE SYSTEMS

FHC-ADVANCE SERIES FRAMELESS
GLASS ENTRANCE SYSTEM
NEW
INNOVATIVE FHC Advance Rail
DESIGN

2-1/2" Low Profile Square Door Rail

- U.S. Patent Nos. 11,060,341 and 11,187,323
- New Modern Crisp Corner Design
- Easiest and Fastest Rail to Install in the Industry
- For 3/8", 1/2", 5/8" or 3/4" Monolithic Tempered and
9/16", 11/16" or 13/16" Laminated Tempered Glass
- Class 1 Anodizing UV Stable Finishes
®
That Will Not Fade HERC-DOOR Patch
Fittings Also Available!
- Increased Glass Bite
Improves Holding Strength
and Aesthetics
- Solid One Piece
Aluminum Housing
Door Rail - State-of-the-Art Solid Forged
With Lock Shown Brass Plated End Caps With 2-1/2" Low Profile
Square HERC-DOOR
®
Premium Finishes and New
Patch Fitting
Innovative Anti-Clamshell Pad (See Pages 56-57)
End Cap
- Available With or Without Lock
- Available In a Wide Range of Architectural Finishes
- Accepts Standard Size Mounting Hardware
DESIGNED & MANUFACTURED BY
FRAMELESS HARDWARE COMPANY

2-1/2" Low Profile Square Door Rail for 3/8", 1/2" or 9/16" Tempered or Laminated Glass

Finishes In Stock * Custom Finishes

BS BRUSHED PS POLISHED SA SATIN MB MATTE DU DARK PB POLISHED SB SATIN 0RB OIL PT CUSTOM PAINT
STAINLESS STAINLESS ANODIZED BLACK BRONZE BRASS BRASS* RUBBED COLOR*
ANODIZED BRONZE*

2-1/2" LOW PROFILE SQUARE DOOR RAILS 35-3/4" LENGTH - STOCK PRODUCTS READY TO SHIP
FOR 3/8" GLASS FOR 3/8" GLASS FOR 1/2" & 9/16" GLASS FOR 1/2" & 9/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
R25S38XX R25S38XXL R25S12XX R25S12XXL

CUSTOM LENGTH AND/OR FINISH ( ) 2-1/2" LOW PROFILE SQUARE DOOR RAILS - MANUFACTURED TO CUSTOMER SPECIFICATIONS
*
FOR 3/8" GLASS FOR 3/8" GLASS FOR 1/2" & 9/16" GLASS FOR 1/2" & 9/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
R25S38XXC R25S38XXLC R25S12XXC R25S12XXLC

XX Denotes Finish.
visit fhc-usa.com to search for

THE GLAZING SUPPLY COMPANY Door Rails
or enter the Item Number or scan QR code with
12 EXPERIENCE AND INNOV A TION your smartphone for complete product details
